NB / 38
Tire for middle and large loaders with durable carcass structure
OVERVIEW
NB-38 (E-3)

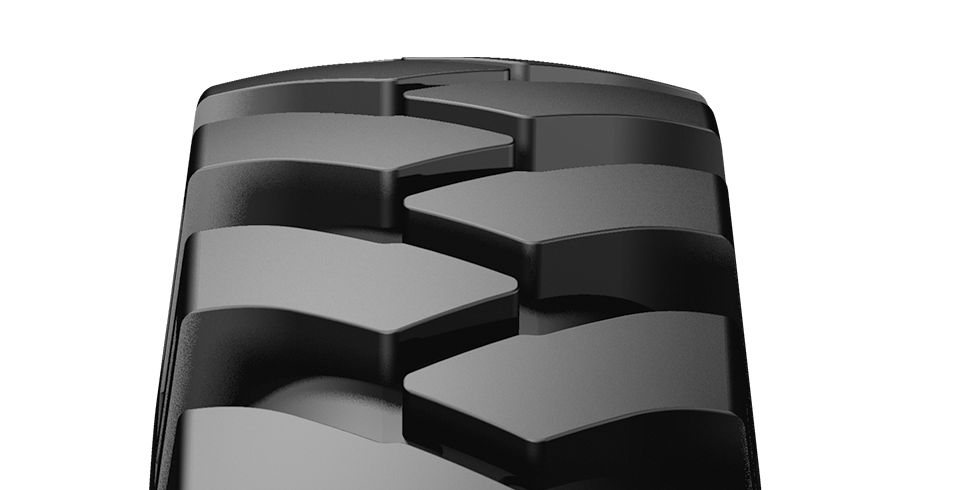

NB-38 is specially developed for road construction excavators. Its
aggressive tread pattern delivers outstanding traction and enables
excellent self-cleaning. Promises high resistance to cuts and tears and
thus, ensures longevity thanks to its reinforced carcass structure.
PROPERTIES
TIRE SECTION
ALL SIZES
NB / 38
| TIRE SIZE | PR | TT/TL | LOAD INDEX | SPEED SYMBOL | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | TREAD DEPTH(MM) | INFLATING PRESSURE (psi/bar) | LOAD CAPACITY PER TIRE (SINGLE AXE USAGE) | LOAD CAPACITY PER TIRE (DOUBLE AXE USAGE) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SINGLE AXE USAGE | DOUBLE AXE USAGE | RECOM. (INCHES) | PERMITTED (INCHES) | Section Width Min-Max | OUTER DIAMETER (MM) | DYNAMIC RADIUS CIRCLE (MM) | STATIC LOADED RADIUS (MM) | 50 | 50 | ||||||
| 10.00-20 | 16 | TT | 146 | 143 | B | 7.50 | 7.0 ; 8.0 | 270 | 1060 | 3074 | 481 | 22 | 109 | 3000 | 2725 |
| 7.50-20 | 10 | TT | 123 | 122 | B | 5.50F | 6.00F | 214 | 904 | 2622 | 417 | 15 | 58 | 1550 | 1500 |
| 9.00-20 | 14 | TT | 140 | 137 | B | 7.00 | 6.5 ; 7.5 | 270 | 1036 | 3004 | 471 | 20 | 62 | 2500 | 2300 |
