NB60 / E-3

Implement Tire

NB60

OVERVIEW

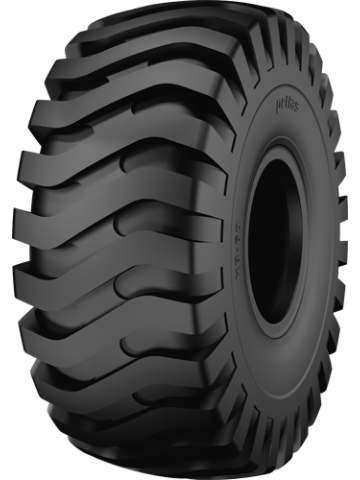

NB-60 (E-3)

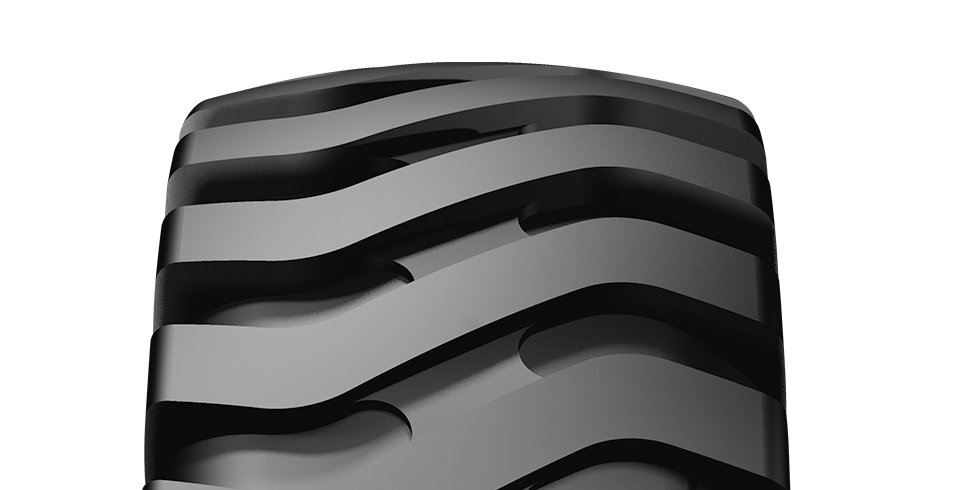

Delivers outstanding grip in construction sites thanks to its nondirectional
tread pattern design. The tread compound improves cut and
chip resistance. Offers ultimate durability thanks to solid tread center
structure and strong nylon carcass.

more
  • NB60
  • NB60
  • NB60

PROPERTIES

NB60

TIRE SECTION

ALL SIZES

NB60 / E-3

TIRE SIZEPRTT/TLLOAD INDEXSPEED SYMBOLRIMINFLATED DIMENSIONS (NO LOAD)INFLATED DIMENSIONS (W/LOAD)TREAD DEPTH(MM)INFLATING PRESSURE (psi/bar)LOAD CAPACITY PER TIRE (KG)
RECOM. (INCHES)PERMITTED (INCHES)Section Width Min-MaxOUTER DIAMETER (MM)DYNAMIC RADIUS CIRCLE (MM)STATIC LOADED RADIUS (MM)Speed (KM/H)
101520253035404550556065
16.00-2532TL177B11.25/2.011.25/2.0 IF (2) ;13.00/2.04321493433067031948175803078857740759575207300
17.5-2516TL158B14.00/1.514.00/1.3 (1) ;13.00/1.4 (DC)4451348390961026444760467545904500442043754250
17.5-2520TL164B14.00/1.514.00/1.3 (1) ;13.00/1.4 (DC)4451348390961026585600550054005300520051505000
18.00-2532TL183B13.00/2.513.00(2.5 IF (2) ;15.00/2.54981615468471931839800962594509275910090158750
18.00-2540TL187B13.00/2.513.00(2.5 IF (2) ;15.00/2.549816154684719341021092010725105301033510140100459750
18.00-3332TL188B13.00/2.5-4981818527282137831120110010801060104010301000
18.00-3332TL188B13.00/2.5-49818185272821348311200110001080010600104001030010000
18.00-3336TL190B13.00/2.5-49818185272821379111870116601145011235110201092010600
20.5-2516TL167B17.00/2.017.00/2.0 IF (2)5201492432766930406100600058905775567056105450
23.5-2520TL177B19.50/2.519.50,2.5IF(2)5971617468972035448175803078807740759075207300
23.5-2524TL180B19.50/2.519.50,2.5IF(2)5971617468972035448960880086408480832082408000
26.5-2528TL188B22.00/3.022.00/3.0 IF(2)6731720507577539511120110010801060104010301000
26.5-2532TL192B22.00/3.022.00/3.0 IF(2)6731720507577539621254123212091187116511531120
29.5-2528TL193B25.00/3.525.00/3.5 IF (2)7501873543282544471288126512421219119611841150
