NB60 / L-3
Midsize and large loader tire
OVERVIEW
NB-60 (L-3)

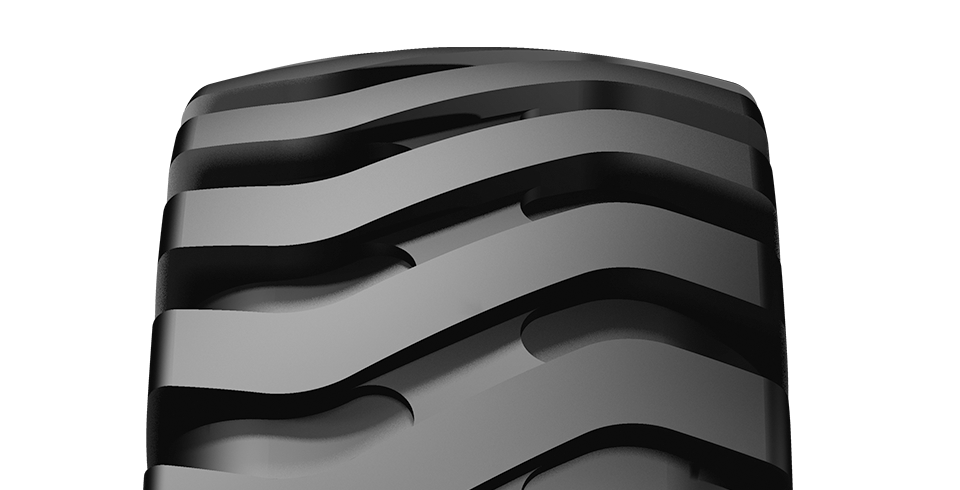

Delivers outstanding grip in construction sites thanks to its non-directional
tread pattern design. The tread compound ensures excellent cut and chip
resistance. Provides outstanding durability thanks to its solid tread center
structure and strong nylon carcass.
PROPERTIES
TIRE SECTION
ALL SIZES
NB60 / L-3
| TIRE SIZE | PR | TT/TL | LOAD INDEX | SPEED SYMBOL | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | TREAD DEPTH(MM) | INFLATING PRESSURE (psi/bar) | LOAD CAPACITY PER TIRE (KG) | LOAD CAPACITY PER TIRE (KG) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RECOM. (INCHES) | PERMITTED (INCHES) | Section Width Min-Max | OUTER DIAMETER (MM) | DYNAMIC RADIUS CIRCLE (MM) | STATIC LOADED RADIUS (MM) | OFF ROAD PURPOSES | HARD IMPROVED SURFACE | |||||||||||
| STATIC | 10 KM/H ** | 25 KM/H | STATIC | 5 KM/H | 10 KM/H ** | |||||||||||||
| 17.5-25 | 16 | TL | 177 | A2 | 14.00/1.5 | 14.00/1.3 (1) ; 13.00/1.4 (DC) | 445 | 1348 | 3909 | 610 | 69 | 16000 | 10000 | 8500 | 18000 | 14500 | 13500 | |
| 17.5-25 | 20 | TL | 181 | A2 | 14.00/1.5 | 14.00/1.3 (1) ; 13.00/1.4 (DC) | 445 | 1348 | 3909 | 610 | - | 83 | 13200,0 | 8250 | 7010,0 | 14850,0 | 11960,0 | 11135 |
| 18.00-25 | 32 | TL | 202 | A2 | 13.00/2.5 | 13.00(2.5 IF (2) ; 15.00/2.5 | 498 | 1615 | 4684 | 719 | - | 109 | 24000 | 15000 | 12750 | 27000 | 21750 | 20250 |
| 18.00-25 | 40 | TL | 206 | A2 | 13.00/2.5 | 13.00(2.5 IF (2) ; 15.00/2.5 | 498 | 1615 | 4684 | 719 | - | 138 | 27200 | 17000 | 14450 | 30600 | 24650 | 22950 |
| 18.00-33 | 32 | TL | 207 | A2 | 13.00/2.5 | - | 498 | 1818 | 5272 | 821 | - | 109 | 28000 | 17500 | 14875 | 31500 | 25375 | 23625 |
| 18.00-33 | 36 | TL | 209 | A2 | 13.00/2.5 | - | 498 | 1818 | 5272 | 821 | - | 123 | 29600 | 18500 | 15725 | 33300 | 26825 | 24975 |
| 20.5-25 | 16 | TL | 181 | A2 | 17.00/2.0 | 17.00/2.0 IF (2) | 520 | 1492 | 4327 | 669 | - | 51 | 13200,0 | 8250 | 7010,0 | 14850,0 | 11960,0 | 11135 |
| 20.5-25 | 20 | TL | 186 | A2 | 17.00/2.0 | 17.00/2.0 IF (2) | 520 | 1492 | 4327 | 669 | - | 65 | 15200 | 9500 | 8075 | 17100 | 13775 | 12825 |
| 23.5-25 | 20 | TL | 191 | A2 | 19.50/2.5 | 19.50/2.5 IF (2) | 597 | 1617 | 4689 | 720 | - | 54 | 17440 | 10900 | 9265 | 19620 | 15805 | 14715 |
| 23.5-25 | 24 | TL | 196 | A2 | 19.50/2.5 | 19.50/2.5 IF (2) | 597 | 1617 | 4689 | 720 | - | 69 | 20000 | 12500 | 10625 | 22500 | 18125 | 16875 |
| 26.5-25 | 28 | TL | 203 | A2 | 22.00/3.0 | 22.00/3.0 IF (2) | 673 | 1750 | 5075 | 775 | - | 69 | 24800 | 15500 | 13175 | 27900 | 22475 | 20925 |
| 26.5-25 | 32 | TL | 206 | A2 | 22.00/3.0 | 22.00/3.0 IF (2) | 673 | 1750 | 5075 | 775 | - | 80 | 27200 | 17000 | 14450 | 30600 | 24650 | 22950 |
| 29.5-25 | 28 | TL | 207 | A2 | 25.00/3.5 | 25.00/3.5 IF (2) | 750 | 1873 | 5432 | 825 | - | 62 | 28000 | 17500 | 14875 | 31500 | 25375 | 23625 |
| 29.5-25 | 32 | TL | 210 | A2 | 25.00/3.5 | 25.00/3.5 IF | 750 | 1873 | 5432 | 825 | - | |||||||
