PA / 40

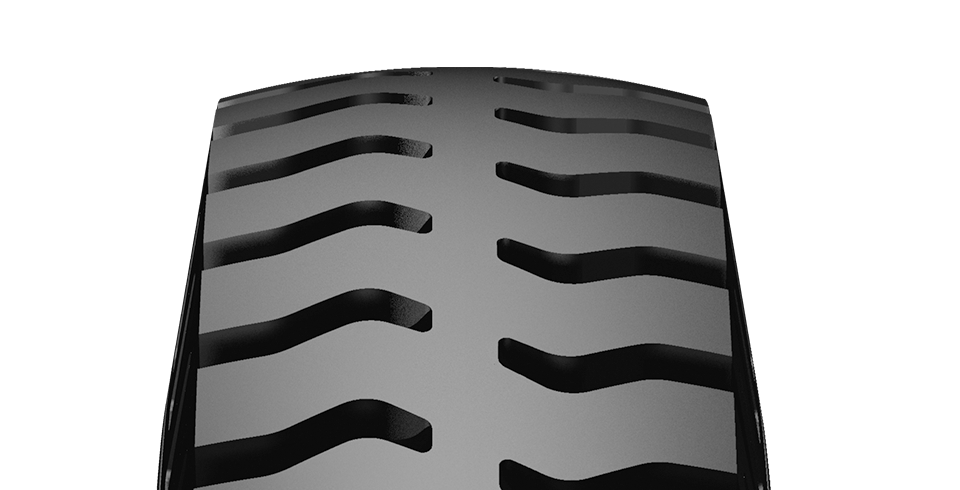

Bus – truck diagonal tire with wide base and modern tread pattern
OVERVIEW
PA40
PA 40 is a steer axle bias tire suitable to use in standart
conditions. Also higly resistant to cut and wears. Offers
longevity thanks to its strong carcass structure, tread geometry,
specially developed tread composition. PA40 provides
ultimate load capacity and self-cleaning
PROPERTIES
TIRE SECTION
ALL SIZES
PA / 40
| TIRE SIZE | PR | TT/TL | LOAD INDEX | SPEED SYMBOL | LOAD CAPACITY (kg) | SPEED LIMIT (km/h) | INFLATING PRESSURE (psi) | RIM | INFLATED DIMENSIONS | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 wheeled maximum load per axle (kg) | 4 wheeled maximum load per axle (kg) | RECOM. (INCHES) | PERMITTED (INCHES) | Section Width Min-Max | OUTER DIAMETER (MM) | |||||||
| 9.00-20 | 14 | TT | 140/137 | J | 5000 | 9200 | 100 | 105 | 7.0, B7.0, 7.0T | 6,00T, 6.5, B6.5, 6.5T, 7.33V, 7.5, B7.5, 7.5V | 256 | 1023 |
| 10.00-20 | 16 | TT | 146/143 | J | 6000 | 10900 | 100 | 116 | 7.5, B7.5, 7.5V | 6,00T, 7.0, B7.0, 7.0T, 7.33V, 8.0, B8.0, 8.0V | 275 | 1060 |
| 11.00-20 | 16 | TT | 149/145 | J | 6500 | 11600 | 100 | 119 | 8.0, B8.0, 8.0V | 7.33V, 7.5, B7.5, 7.5V, 8.37V 8.5, 135.5, 8.5V, 8.50V, 9.00V | 291 | 1098 |
| 12.00-20 | 18 | TT | 154/149 | J | 7500 | 13000 | 100 | 123 | 8.5, B8.5, 8.5V | 7.33V, 8.0, 8.0V, B8.0, 8.37V 9.0, 9.0V, 9.00V | 312 | 1135 |
| 12.00-24 | 18 | TT | 156/153 | J | 8000 | 14600 | 100 | 113 | 8.5, B8.5, 8.5V | 7.33V, 8.0, 8.0V, B8.0, 8.37V 9.0, 9.0V, 9.00V | 312 | 1239 |
