PD / 40

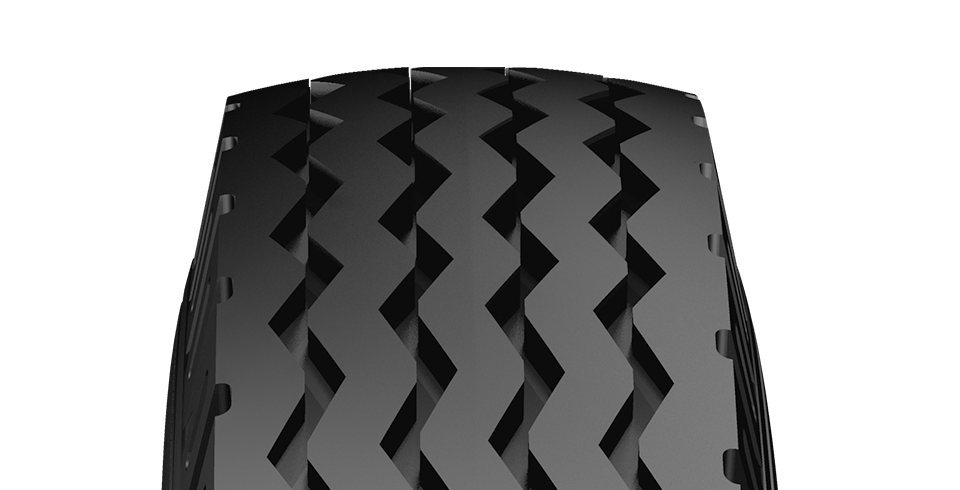

Bus – truck diagonal tire with wide base and modern tread pattern
OVERVIEW
PD40
PD 40 is a steer axle bias tire suitable to use in standart
conditions. It provides balanced driving thanks to its specially
tread design for steer axles. Offers longevity, ultimate grip and
traction through wide base modern tread design and nylon
cord structure.
PROPERTIES
TIRE SECTION
ALL SIZES
PD / 40
| TIRE SIZE | PR | TT/TL | LOAD INDEX | SPEED SYMBOL | LOAD CAPACITY (kg) | SPEED LIMIT (km/h) | INFLATING PRESSURE (psi) | RIM | INFLATED DIMENSIONS | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 wheeled maximum load per axle (kg) | 4 wheeled maximum load per axle (kg) | RECOM. (INCHES) | PERMITTED (INCHES) | Section Width Min-Max | OUTER DIAMETER (MM) | |||||||
| 9.00-20 | 14 | TT | 140/137 | J | 5000 | 9200 | 140 | 100 | 7.0, B7.0, 7.0T | 6,00T, 6.5, B6.5, 6.5T, 7.33V, 7.5, B7.5, 7.5V | 256 | 1023 |
| 10.00-20 | 16 | TT | 146/143 | J | 6000 | 10900 | 140 | 100 | 7.5, B7.5, 7.5V | 6,00T, 7.0, B7.0, 7.0T, 7.33V, 8.0, B8.0, 8.0V | 275 | 1060 |
| 11.00-20 | 16 | TT | 149/145 | J | 6500 | 11600 | 170 | 100 | 8.0, B8.0, 8.0V | 7.33V, 7.5, B7.5, 7.5V, 8.37V 8.5, 135.5, 8.5V, 8.50V, 9.00V | 291 | 1098 |
| 12.00-20 | 18 | TT | 154/149 | J | 7500 | 13000 | 170 | 100 | 8.5, B8.5, 8.5V | 7.33V, 8.0, 8.0V, B8.0, 8.37V 9.0, 9.0V, 9.00V | 312 | 1135 |
| 12.00-24 | 18 | TT | 156/153 | J | 8000 | 14600 | 170 | 100 | 8.5, B8.5, 8.5V | 7.33V, 8.0, 8.0V, B8.0, 8.37V 9.0, 9.0V, 9.00V | 312 | 1239 |
