PL / 2
Long life loader tire

OVERVIEW
PL-2

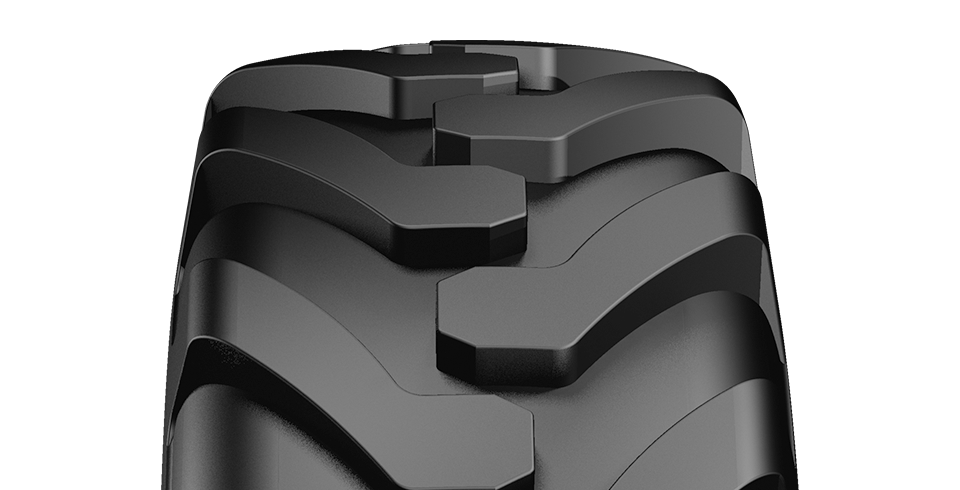

The ideal tire for compact machinery applications. Deep tread depth
and directional tread pattern enhance traction in challenging off the
road conditions. Offers excellent self-cleaning feature with its special lug
design.
PROPERTIES

TIRE SECTION
ALL SIZES
PL / 2
TIRE SIZE | PR | TT/TL | LOAD INDEX | SPEED SYMBOL | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | TREAD DEPTH(MM) | INFLATING PRESSURE (psi/bar) | LOAD CAPACITY PER TIRE (KG) | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RECOM. (INCHES) | PERMITTED (INCHES) | Section Width Min-Max | OUTER DIAMETER (MM) | DYNAMIC RADIUS CIRCLE (MM) | STATIC LOADED RADIUS (MM) | Speed (KM/H) | ||||||||||||||||||
10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | |||||||||||||
15.5-25 | 12 | TL | 149 | B | 12.00/1.3 | 12.00/1.3 (DC) (1) | 394 | 1277 | 3703 | 581 | 25 | 36 | 3640 | 3575 | 3510 | 3445 | 3380 | 3350 | 3250 |
