PM / 40
Military Tire
OVERVIEW
PM40

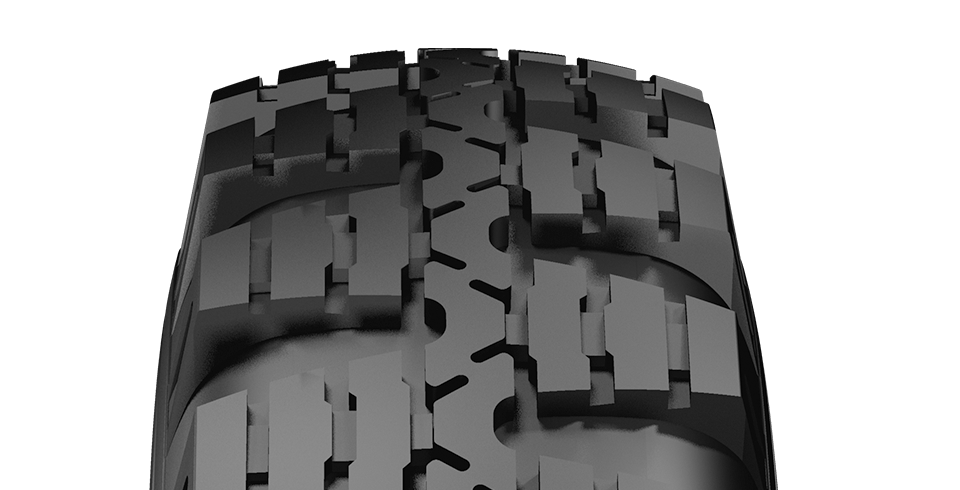

The tread pattern of this tire provides excellent traction in both
forward and reverse direction. Its powerful nylon body protects
the tire and provides long life. Ideal for on/off road applications at
all weather conditions and suitable for retreading.
PROPERTIES
TIRE SECTION
ALL SIZES
PM / 40
| TIRE SIZE | PR | TT/TL | LOAD INDEX | SPEED SYMBOL | LOAD CAPACITY (kg) | SPEED LIMIT (km/h) | INFLATING PRESSURE (psi) | RIM | INFLATED DIMENSIONS | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 wheeled maximum load per axle (kg) | 4 wheeled maximum load per axle (kg) | RECOM. (INCHES) | PERMITTED (INCHES) | Section Width Min-Max | OUTER DIAMETER (MM) | |||||||
| 14.00-20 | 18 | TT | 160/157 | F | 9000 | 16500 | 80 | 100 | 10.0, 10.00V, 10.00W | 9 | 375 | 1260 |
| 14.00-20 | 20 | TT | 161/158 | F | 9000 | 17000 | 80 | 108 | 10.0, 10.00V, 10.00W | 9 | 375 | 1260 |
