PtxND33 / (R-4)
RADIAL INDUSTRIAL TRACTION

OVERVIEW
PtxND33 (R-4)
PtxND33 (R-4) is developed and designed to offer perfect traction and long life for compact industrial vehicles such as compact loaders, backhoe loaders and telehandlers. Deep and wide lugs are carefully located on the tread to ensure perfect traction on hard or soft terrains. The wide tread profile provides a balanced feel on every condition and increases the tire’s service life by avoiding irregular wear. Reinforced sidewalls offer maximum resistance against cuts and puncture while the steel belts under the tread improve the tire’s durability and load capacity.
PROPERTIES

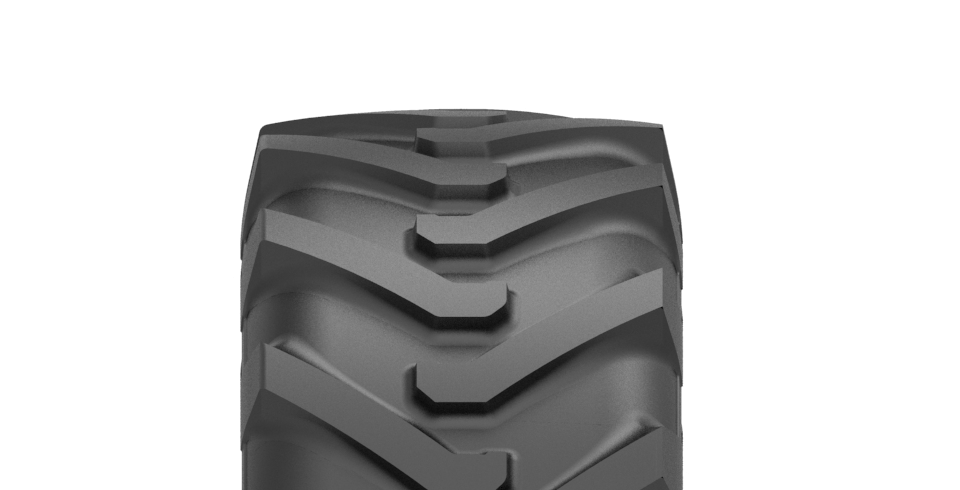

TIRE SECTION
ALL SIZES
PtxND33 / (R-4)
TIRE SIZE | PR | TT/TL | LOAD INDEX | SPEED SYMBOL | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | TREAD DEPTH(MM) | INFLATING PRESSURE (psi/bar) | LOAD CAPACITY PER TIRE (KG) | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RECOM. (INCHES) | PERMITTED (INCHES) | Section Width Min-Max | OUTER DIAMETER (MM) | DYNAMIC RADIUS CIRCLE (MM) | STATIC LOADED RADIUS (MM) | Speed (KM/H) | ||||||||||||||||||
10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | |||||||||||||
460/70R24 | - | TL | 159 | A8/B | DW15L | DW14L ; DW16L | 453 | 1251 | 562 | 3740 | - | 58 | 5470 | - | - | 4855 | 4680 | - | 4375 | - | 4375 | - | - | - |
