RC / 700
DRIVE AXLE
DOES IT FIT YOUR CAR?
EU LABEL
Avarage values from all sizes, on this specific Model
- E
- B
- 73-75 db
OVERVIEW

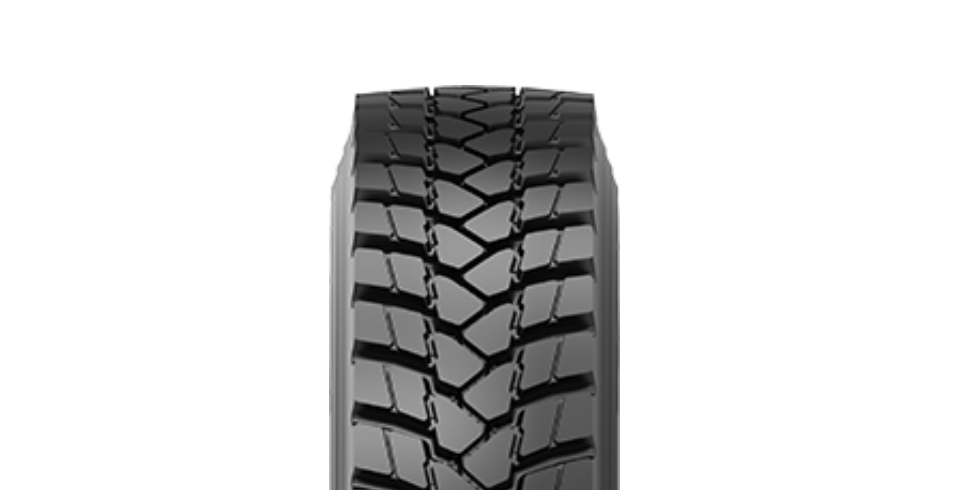

RC700
RC700 is a drive axle pattern suitable for mixed service. Its special
tread compound provides resistance to tears.
Delivers high mileage and comfort on asphalt roads. The directional tread design offers exceptional
traction along with effective soil discharge and drainage.
PATTERN PROPERTIES
- close
Spall ejectors located among the block arrays reduce the rock crushing thorughout the grooves
- close
Reinforced block arrays with colligation ensure steady driving on the motorway as enhance the wearing out endurance of the blocks
- close
Diagonal block design maintains the steady driving on the motorway and also provides maximum grip and traction on the wet and mudier ground
- close
Optimized groove design enables picture perfect water/mud/snow discharge
- close
Exclusive tread compound provides endurance against wearout, cuts and splits
- close
Due to optimized tread profile, tire distribute the pressure balanced under load and so becomes durable against the irregular wearout
- close
Ultra durable carcass structure allows to retread
ALL SIZES
RC / 700
| TIRE SIZE | PR | TT/TL | LOAD INDEX | SPEED SYMBOL | LOAD CAPACITY (kg) | SPEED LIMIT (km/h) | INFLATING PRESSURE (psi) | RIM | INFLATED DIMENSIONS | EU LABEL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 wheeled maximum load per axle (kg) | 4 wheeled maximum load per axle (kg) | RECOM. (INCHES) | PERMITTED (INCHES) | Section Width Min-Max | OUTER DIAMETER (MM) | ||||||||
| 12R22.5M+S | 16 | TL | 152/148 | K | 7100 | 12600 | 110 | 125 | 9.00 | 8.25 | 301 | 1092 | LABEL |
| 315/80R22.5M+S | 18 | TL | 156/150 | K | 8000 | 13400 | 110 | 123 | 9.00 | 9.75 | 312 | 1085 | LABEL |
| 315/80R22.5M+S | 18 | TL | 154/150 | L | 7500 | 13400 | 120 | 120 | 9.00 | 9.75 | 312 | 1085 | LABEL |
