RH / 100

DRIVE AXLE

DOES IT FIT YOUR CAR?
RH

EU LABEL

Avarage values from all sizes, on this specific Model

  • E
  • CA
  • 74 db
EU ratings vary by the tire size.Enter your full tire size to see exact values

OVERVIEW

*EU label figures are valid for the tires will be produced after December 12.2017

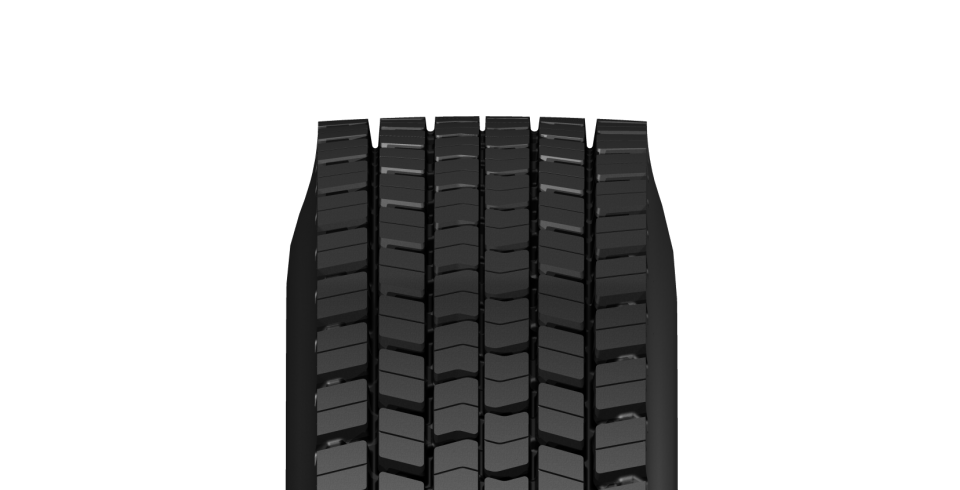

Perfect traction on asphalt surfaces with block pattern structure

Comfortable drive with reinforced blocks and perfectly placed block array

Resistant to irregular wear under heavy loads with optimized tread profile

Perfect grip with special tread mixture and strong carcass structure

Compatible with retreading with strong carcass structure

more
  • RH
  • RH
  • RH
RH

PATTERN PROPERTIES

  • close

    Optimised tread depth provides long life

  • close

    Block array structure provides high traction by generating numerous road holding points on asphalt in any kind of weather conditions

  • close

    Reinforced interconnected blocks provide balanced and comfortable driving with excellent designed block array

  • close

    Circumferential and lateral grooves drain water quickly and efficiently

  • close

    Excellent carcass structure is suitable for retreading

  • close

    Optimised tread design provides resistance against irregular wear by balancing the pressure equally under load

  • close

    Special tread compound and robust structure provide longevity and economic fuel consumption

ALL SIZES

RH / 100

TIRE SIZEPRTT/TLLOAD INDEXSPEED SYMBOLLOAD CAPACITY (kg)SPEED LIMIT (km/h)INFLATING PRESSURE (psi)RIMINFLATED DIMENSIONSEU LABEL
2 wheeled maximum load per axle (kg)4 wheeled maximum load per axle (kg)RECOM. (INCHES)PERMITTED (INCHES)Section Width Min-MaxOUTER DIAMETER (MM)
11R22.5M+S16TL148/145L6300116001301238.257.50278.51058LABEL
12R22.5M+S16TL152/148M7100126001301259.008.253001096LABEL
285/70R19.5M+S16TL146/144L6000112001201258,257.5 , 9.00287897.5LABEL
285/70R19.5M+S16TL140/137M500092001301058,257.5 , 9.00287897.5LABEL
315/70R22.5M+S18TL154/150L7500134001201309.009.753151021.5LABEL
315/70R22.5M+S18TL152/148M7100126001301309.009.753151021.5LABEL
315/80R22.5M+S18TL156/150M8000134001201209.009.753121096LABEL
315/80R22.5M+S18TL154/150M7500134001301209.009.753121096LABEL
315/80R22.5M+S18TL154/150M7500134001301209.009.753121096LABEL
