SH / 105
STEER AXLE
DOES IT FIT YOUR CAR?
EU LABEL
Avarage values from all sizes, on this specific Model
- DC
- BA
- 72 db
OVERVIEW
*EU label figures are valid for the tires will be produced after December 15.2017

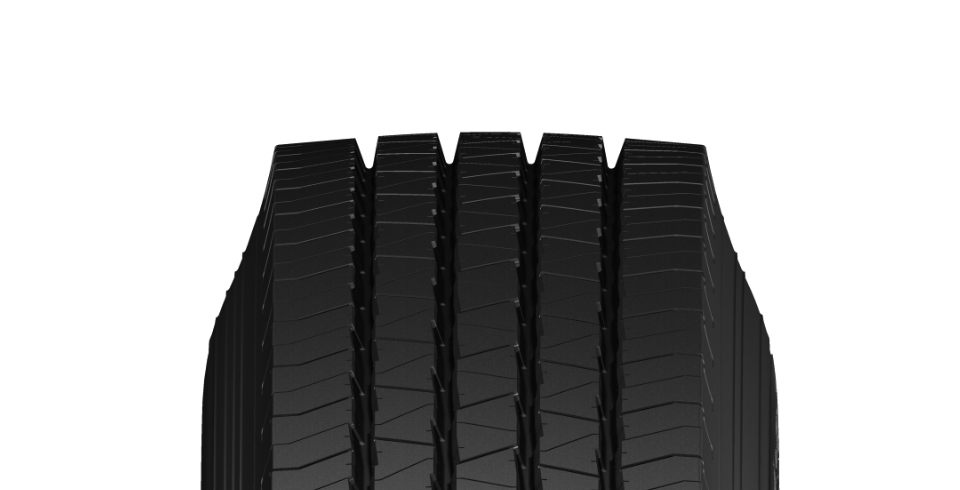

Special front axle tire for trucks and busses
Balanced drive, amazing comfort, ultimate grip and maneuverability on asphalt surfaces
Resistant against irregular wear with equal pressure distribution thanks to its optimized pattern profile
SH100, providing long life and fuel save with special tread mixture and durable construction, is fit for retreading many times thanks to its durable carcass structure
PATTERN PROPERTIES
- close
Wide shoulder blocks provide lateral balance and enhance a smooth driving
- close
Medium density circumferential lamel blocks provide superior handling and short brake distance
- close
Indented side blocks provide safe brake distance even if the tire is worn
- close
Circumferential grooves drain water quickly and efficiently
- close
Optimised tread design provides resistance against irregular wear by balancing the pressure equally under load
- close
Special tread compound and robust structure provide longevity and economic fuel consumption
- close
Excellent carcass structure is suitable for retreading many times
ALL SIZES
SH / 105
| TIRE SIZE | PR | TT/TL | LOAD INDEX | SPEED SYMBOL | LOAD CAPACITY (kg) | SPEED LIMIT (km/h) | INFLATING PRESSURE (psi) | RIM | INFLATED DIMENSIONS | EU LABEL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 wheeled maximum load per axle (kg) | 4 wheeled maximum load per axle (kg) | RECOM. (INCHES) | PERMITTED (INCHES) | Section Width Min-Max | OUTER DIAMETER (MM) | ||||||||
| 11R22.5 | 16 | TL | 148/145 | L | 6300 | 11600 | 130 | 123 | 8.25 | 7.50 | 278.5 | 1049 | LABEL |
| 12R22.5 | 16 | TL | 152/148 | M | 7100 | 12600 | 130 | 125 | 9.00 | 8.25 | 300 | 1085 | LABEL |
