TBR TIRES

SR750

SR750

All position truck tire. It provides balanced drive, excellent comfort and superior maneuverability.

Truck and Bus Tires | SR750
SR750

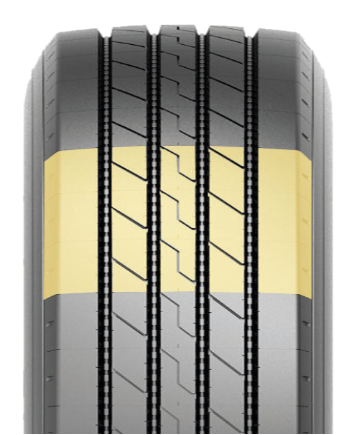

TECHNICAL HIGHLIGHTS

  • Provides comfortable drive and even wear thanks to its computer-generated prime number of block types and block sequence.

  • Provides superior drive comfort and resistance to uneven wear thanks to its 5 rib design with a rib at center.

  • Disperses water effectively with its circumferential grooves. It minimises pebble lodging into grooves with its pebble removers.

SR750

ALL SIZES TRUCK AND BUS

MANUFACTURER CODE TIRE SIZE LOAD / SPEED INDEX LOAD CAPACITY
(kg)
SPEED LIMIT RIM DIAMETER (Inch) INFLATED DIMENSIONS (mm) INFLATED PRESSURE PLY SNOW FLAKE EU TIRE LABEL
SINGLE DUAL RECOMMENDED PERMITTED SECTION WIDTH OUTER DIAMETER psi kPA ROLLING RESISTANCE WET GRIP NOISE dB NOISE LEVEL lbldwn
37P404
295/75 R22.5 146/143L
3000 5450 120 9 8.25 289.9
1027.5
120
825 16 PLY - - - - -
37T604
295/75 R22.5 144/141M
2800 5150 130 9 8.25 297.3
1028.5
110 760 16 PLY
- - - - -
MANUFACTURER CODE TIRE SIZE LOAD / SPEED INDEX LOAD CAPACITY
(kg)
SPEED LIMIT RIM DIAMETER (Inch) INFLATED DIMENSIONS (mm) INFLATED PRESSURE PLY SNOW FLAKE EU TIRE LABEL
SINGLE DUAL RECOMMENDED PERMITTED SECTION WIDTH OUTER DIAMETER psi kPA ROLLING RESISTANCE WET GRIP NOISE dB NOISE LEVEL lbldwn
3TT654
11 R22.5 146/143L 3000 5450 120 8.25 7.50 292 1069.5
120 825
16 PLY
- - - - -
MANUFACTURER CODE TIRE SIZE LOAD / SPEED INDEX LOAD CAPACITY
(kg)
SPEED LIMIT RIM DIAMETER (Inch) INFLATED DIMENSIONS (mm) INFLATED PRESSURE PLY SNOW FLAKE EU TIRE LABEL
SINGLE DUAL RECOMMENDED PERMITTED SECTION WIDTH OUTER DIAMETER psi kPA ROLLING RESISTANCE WET GRIP NOISE dB NOISE LEVEL lbldwn
4FP664
11 R24.5 149/146L 3250 6000 120 8.25 7.50 289 1119.2
120 825 16 PLY
- - - - -
MANUFACTURER CODE TIRE SIZE LOAD / SPEED INDEX LOAD CAPACITY
(kg)
SPEED LIMIT RIM DIAMETER (Inch) INFLATED DIMENSIONS (mm) INFLATED PRESSURE PLY SNOW FLAKE EU TIRE LABEL
SINGLE DUAL RECOMMENDED PERMITTED SECTION WIDTH OUTER DIAMETER psi kPA ROLLING RESISTANCE WET GRIP NOISE dB NOISE LEVEL lbldwn
55P687
225/70 R22.5
140/137M
2500 4600 130 7.5
6.75 / 8.25
260
926.3
120
825
16 PLY - - - - -
