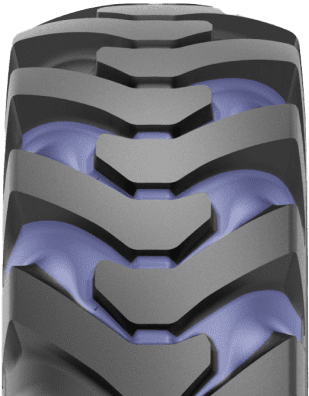

Designed specifically for grader and construction machinery applications, the PG200 produced by Petlas showcases exceptional durability due to its solid center tread structure. These grader tires, with their robust nylon carcass structure, promise resistance against cuts, chunks, and tears. Further enhancing their performance, the open shoulder design delivers outstanding traction even in challenging conditions.
Strong nylon carcass structure promise resistance to cuts, chunks and tears.
Open shoulders delivers outstanding traction in challenging conditions.
Very durable thanks to its solid tread center structure.
| MANUFACTURER CODE | TIRE SIZE | PR | TT/TL | LOAD / SPEED INDEX | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | INFLATING PRESSURE (psi) | LOAD CAPACITY PER TIRE(KG) | |||||||||
| RECOM.(INCHES) | PERMITTED (INCHES) | OUTER DIAMETER (MM) | SECTION WIDTH MIN-MAX | STATIC LOADED RADIUS (MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | SPEED (KM/H) | ||||||||||||
| 15 | 20 | 25 | 30 | 35 | 40 | 50 | ||||||||||||
| 7365 | 13.00-24 | 12 | TT | 143 / A8 | 8.00 TG SDC | 9.00/1.5 (DC) (1) ; 10.00/VA SDC | 1278 | 333 | 579 | 3706 | 44 | 3080 | 2970 | 2890 | 2835 | 2780 | 2725 | 2480 |
| 7370 | 13.00-24 | 12 | TL | 143/ A8 | 8.00 TG SDC | 9.00/1.5 (DC) (1) ; 10.00/VA SDC | 1278 | 333 | 579 | 3706 | 44 | 3080 | 2970 | 2890 | 2835 | 2780 | 2725 | 2480 |
| 7446 | 13.00-24 | 16 | TL | 151/ A8 | 8.00 TG SDC | 9.00/1.5 (DC) - 10.00/VA SDC | 1278 | 333 | 579 | 3706 | 51 | 3900 | 3760 | 3660 | 3560 | 3520 | 3450 | 3140 |
| 7447 | 13.00-24 | 16 | TL | 151/ A8 | 8.00 TG SDC | 9.00/1.5 (DC) - 10.00/VA SDC | 1278 | 333 | 579 | 3706 | 51 | 3900 | 3760 | 3660 | 3560 | 3520 | 3450 | 3140 |
| MANUFACTURER CODE | TIRE SIZE | PR | TT/TL | LOAD / SPEED INDEX | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | INFLATING PRESSURE (psi) | LOAD CAPACITY PER TIRE(KG) | |||||||||
| RECOM.(INCHES) | PERMITTED (INCHES) | OUTER DIAMETER (MM) | SECTION WIDTH MIN-MAX | STATIC LOADED RADIUS (MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | SPEED (KM/H) | ||||||||||||
| 15 | 20 | 25 | 30 | 35 | 40 | 50 | ||||||||||||
| 7372 | 14.00-24 | 16 | TT | 153/ A8 | 8.00 TG SDC | 9.00/1.5 (DC) (1) ; 10.00/VA SDC | 1348 | 362 | 608 | 3909 | 54 | 4125 | 3980 | 3870 | 3800 | 3725 | 3650 | 3325 |
| 7374 | 14.00-24 | 16 | TL | 153/ A8 | 8.00 TG SDC | 9.00/1.5 (DC) (1) ; 10.00/VA SDC | 1348 | 362 | 608 | 3909 | 54 | 4125 | 3980 | 3870 | 3800 | 3725 | 3650 | 3325 |
|
7448
|
14.00-24 | 20 | TL | 158/A | 8.00 TG SDC | 9.00/1.5 (DC) (1) ; 10.00/VA SDC | 1348 | 377 | 600 | 3850 | 60 | 4800 | 4635 |
4510
|
4425
|
4340
|
4250
|
3870
|
