PtxND31 (R-4) tire has strong radial casing and steel belted construction. It is developed for construction equipment to be used in the areas of agriculture and construction. The irectional tread pattern provides excellent traction, longevity, resistance to damage and high carrying capacity. PtxND31 (R-4) is the right response to agro-industrial heavy-duty needs. It is suitable for all digging and loading operations on vehicles such as telehandlers, compact loaders and backhoe loaders.

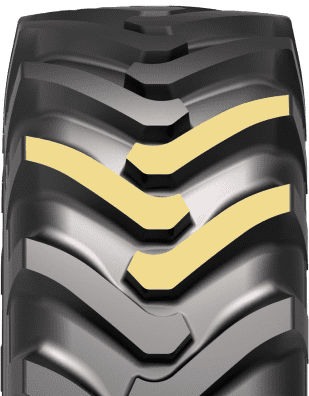

The directional tread pattern provides excellent traction, longevity, resistance to damage and high carrying capacity.
Strong radial casing and steel belted construction, it offers stability, high loading capacity and durability.
| MANUFACTURER CODE | TIRE SIZE | TT/TL | LOAD / SPEED INDEX | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | INFLATING PRESSURE (psi) | LOAD CAPACITY PER TIRE(KG) | |||||||
| RECOM.(INCHES) | PERMITTED (INCHES) | OUTER DIAMETER (MM) | SECTION WIDTH MIN-MAX | STATIC LOADED RADIUS (MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM)) | SPEED (KM/H) | |||||||||
| 10 km/h | 25 km/h | 30 km/h | 40 km/h | 50 km/h | |||||||||||
| 7122 | 340/80 R18 (12.5/80 R18) | TL | 143 A8/B | 11 | W10, 11SDC, W11, | 995 | 345 | 446 | 2975 | 58 | 3405 | 3025 | 2915 | 2725 | 2725 |
| MANUFACTURER CODE | TIRE SIZE | TT/TL | LOAD / SPEED INDEX | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | INFLATING PRESSURE (psi) | LOAD CAPACITY PER TIRE(KG) | |||||||
| RECOM.(INCHES) | PERMITTED (INCHES) | OUTER DIAMETER (MM) | SECTION WIDTH MIN-MAX | STATIC LOADED RADIUS (MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | SPEED (KM/H) | |||||||||
| 10 km/h | 25 km/h | 30 km/h | 40 km/h | 50 km/h | |||||||||||
| 7124 | 340/80 R20 (12.5 R20) | TL | 138A8/B | 11 | 12.00, 11SDC, 12SDC | 1052 | 343 | 477 | 3145 | 46 | 2950 | 2570 | 2455 | 2360 | 2360 |
| 7126 | 340/80 R20 (12.5 R20) | TL | 144 A8/B | 11 | 12.00, 11SDC, 12SDC | 1052 | 343 | 477 | 3145 | 58 | 3500 | 3050 | 2910 | 2800 | 2800 |
| MANUFACTURER CODE | TIRE SIZE | TT/TL | LOAD / SPEED INDEX | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | INFLATING PRESSURE (psi) | LOAD CAPACITY PER TIRE(KG) | |||||||
| RECOM.(INCHES) | PERMITTED (INCHES) | OUTER DIAMETER (MM) | SECTION WIDTH MIN-MAX | STATIC LOADED RADIUS (MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | SPEED (KM/H) | |||||||||
| 10 km/h | 25 km/h | 30 km/h | 40 km/h | 50 km/h | |||||||||||
| 7146 | 480/80 R26 (18.4 R26) | TL | 167 A8/B | DW15L | DW16L | 1428 | 479 | 645 | 4253 | 58 | 6810 | 5940 | 5670 | 5450 | 5450 |
| MANUFACTURER CODE | TIRE SIZE | TT/TL | LOAD / SPEED INDEX | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | INFLATING PRESSURE (psi) | LOAD CAPACITY PER TIRE(KG) | |||||||
| RECOM.(INCHES) | PERMITTED (INCHES) | OUTER DIAMETER (MM) | SECTION WIDTH MIN-MAX | STATIC LOADED RADIUS (MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | SPEED (KM/H) | |||||||||
| 10 km/h | 25 km/h | 30 km/h | 40 km/h | 50 km/h | |||||||||||
| 7142 | 440/80 R28 (16.9 R28) | TL | 156 A8/B | DW14L | DW13, DW13L DW15L | 1415 | 441 | 636 | 4215 | 46 | 5000 | 4440 | 4280 | 4000 | 4000 |
| 7143 | 440/80 R28 (16.9R28) | TL | 156 A8/B | DW14L | DW13, DW13L DW15L | 1435 | 442 | 645 | 4261 | 46 | 5000 | 4440 | 4280 | 4000 | 4000 |
| MANUFACTURER CODE | TIRE SIZE | TT/TL | LOAD / SPEED INDEX | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | INFLATING PRESSURE (psi) | LOAD CAPACITY PER TIRE(KG) | |||||||
| RECOM.(INCHES) | PERMITTED (INCHES) | OUTER DIAMETER (MM) | SECTION WIDTH MIN-MAX | STATIC LOADED RADIUS (MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | SPEED (KM/H) | |||||||||
| 10 km/h | 25 km/h | 30 km/h | 40 km/h | 50 km/h | |||||||||||
| 7110 | 400/70 R20 | TL | 149 A8/B | 13 | 12SDC, 13SDC, 14 | 1068 | 404 | 480 | 3194 | 58 | 4065 | 3610 | 3480 | 3250 | 3250 |
| MANUFACTURER CODE | TIRE SIZE | TT/TL | LOAD / SPEED INDEX | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | INFLATING PRESSURE (psi) | LOAD CAPACITY PER TIRE(KG) | |||||||
| RECOM.(INCHES) | PERMITTED (INCHES) | OUTER DIAMETER (MM) | SECTION WIDTH MIN-MAX | STATIC LOADED RADIUS (MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | SPEED (KM/H) | |||||||||
| 10 km/h | 25 km/h | 30 km/h | 40 km/h | 50 km/h | |||||||||||
| 7112 | 405/70 R20 | TL | 149 A8/B | 13 | 12SDC, 13SDC, 14 | 1070 | 414 | 480 | 3200 | 58 | 4065 | 3610 | 3480 | 3250 | 3250 |
| MANUFACTURER CODE | TIRE SIZE | TT/TL | LOAD / SPEED INDEX | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | INFLATING PRESSURE (psi) | LOAD CAPACITY PER TIRE(KG) | |||||||
| RECOM.(INCHES) | PERMITTED (INCHES) | OUTER DIAMETER (MM) | SECTION WIDTH MIN-MAX | STATIC LOADED RADIUS (MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | SPEED (KM/H) | |||||||||
| 10 km/h | 25 km/h | 30 km/h | 40 km/h | 50 km/h | |||||||||||
| 7134 | 460/70 R24 (17.5L R24) | TL | 159 A8/B | DW15L | DW14L DW16L | 1251 | 453 | 562 | 3740 | 58 | 5470 | 4855 | 4680 | 4375 | 4375 |
