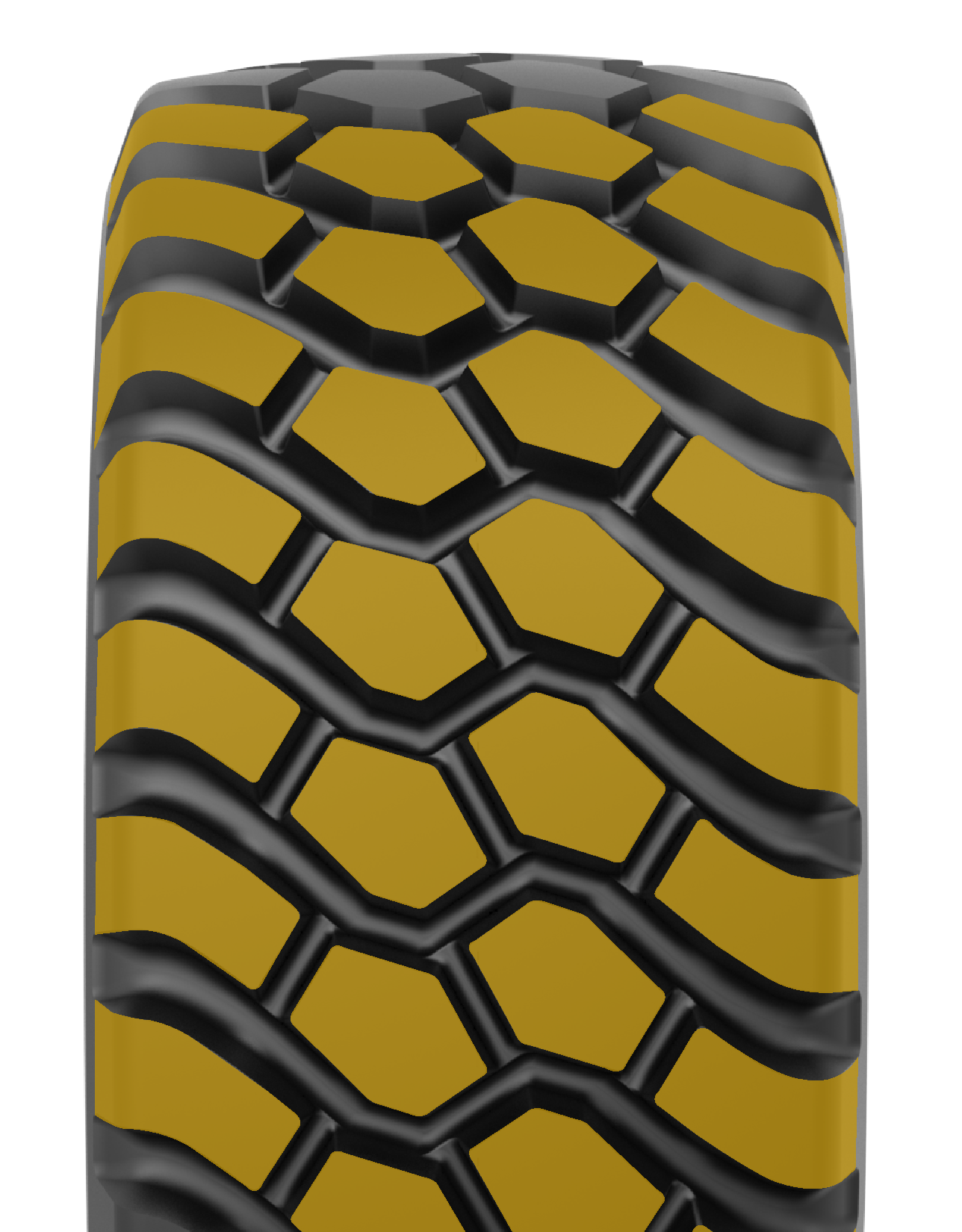

PTxRD35 tire designed to be used in articulated dump trucks. With its specially developed tread compound, it provides excellent resistance to cuts, and longevity.
With its non-directional and symmetrical tread pattern, it provides excellent traction in all directions.
Reinforced blocks increase block resistance on any type of ground. It provides endurance.
It offers self-cleaning feature with optimized channel angles and openings.
| MANUFACTURER CODE | TIRE SIZE | PR | TT/TL | LOAD / SPEED INDEX | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | INFLATING PRESSURE (psi) | LOAD CAPACITY PER TIRE(KG) | |||||||||
| RECOM.(INCHES) | PERMITTED (INCHES) | OUTER DIAMETER (MM) | SECTION WIDTH MIN-MAX | STATIC LOADED RADIUS (MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | SPEED (KM/H) | ||||||||||||
| 30 | 40 | 50 | 60 | |||||||||||||||
| 650/65 R25 | - | TL | 108B | 19.50/2.5 | 19.50/2.5 | 1487 | 631 | 670 | 4786 | 65 | 8800 | 8400 | 8000 | 7590 | ||||
