    Underground Mining

    Code Tire Size Star Rating TT/TL Load / Speed Index TRA Code RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) TREAD DEPTH (mm) INFLATING PRESSURE (psi) LOAD CAPACITY * (kg)
    RECOM. (inches) PERMITTED (inches) OUTER DIAMETER
    (mm)    		 SECTION WIDTH
    (mm)    		 STATIC LOADED RADIUS (mm) DYNAMIC RADIUS CIRCLE (mm) Static 1 Km/H 5 Km/H 10 Km/H 15 Km/H 20 Km/H 25 Km/H 30 Km/H 35 Km/H 40 Km/H
    70520 9.00R20 ** TT 159A2 L-5 7.00 T - 1047 275 477 3000 52 120 7000 5688 4988 4375 3806 3675 3500 3369 3238 3063
    70540 12.00R20 ** TT 171A2 L-5 8.50 T - 1171 334 528 3316 58,5 120 9840 7995 7011 6150 5351 5166 4920 4735,5 4551 4305

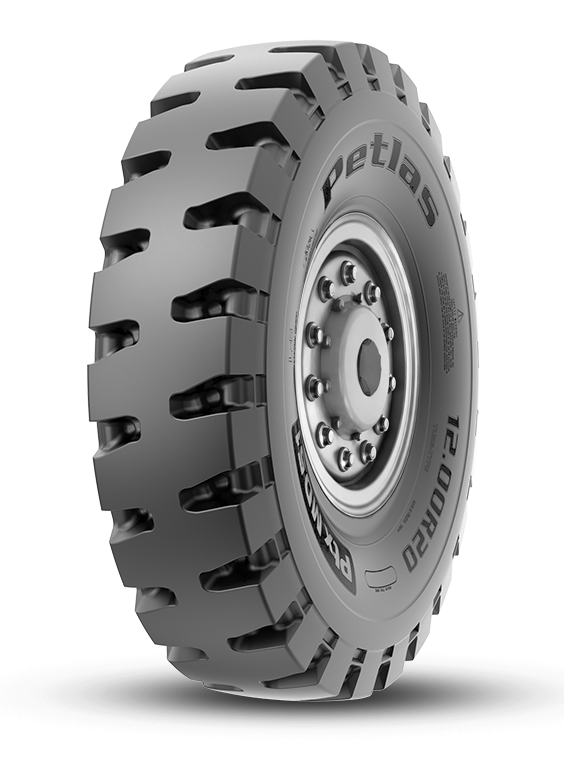

    PtxMD51 (L5)

    PtxMD51 (L5) | Loader Tyres
