TBR TIRES

NZ305

NZ305

NZ305 is a free rolling trailer tire. Special tread design provides exceptional grip on wet roads and ensures outstanding mileage performance.

0%
    NZ305

    TECHNICAL HIGHLIGHTS

    • Five circumferential ribs provide resistance against irregular wear.

    • Lateral sipes ensure short braking distance.

    • Circumferential grooves drain water quickly and efficiently.

    • Blocked pattern structure provides superior handling on wet and snowy roads.

    • High-strength carcass with completely steel frame provides long life retreadability.

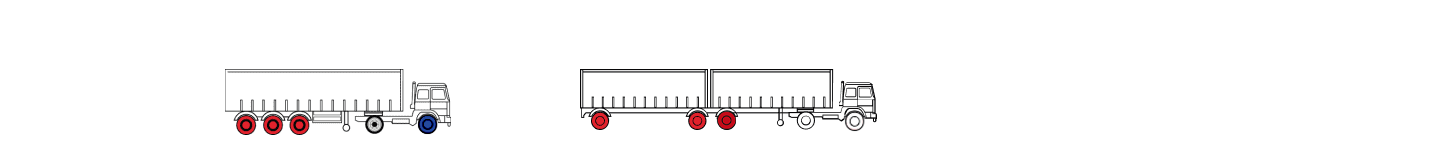

    POSITION / APPLICATION

    NZ305

    ALL SIZES TRUCK AND BUS

    MANUFACTURER CODE TIRE SIZE LOAD / SPEED INDEX LOAD CAPACITY SPEED LIMIT RIM DIAMETER (Inch) INFLATED DIMENSIONS (mm) INFLATED PRESSURE M+S SNOW FLAKE EU TIRE LABEL
    SINGLE DUAL RECOMMENDED PERMITTED SECTION WIDTH OUTER DIAMETER psi kPA ROLLING RESISTANCE WET GRIP NOISE dB NOISE LEVEL lbldwn
    70306 215/75 R17.5 135/133 J 4360 8240 100 6,00 6,75 212 772 123 850 ü ü D B 69 A LABEL
    70406 235/75 R17.5 143/141 J
    (144/144 F)
    5450
    (5600)
    10300
    (11200)
    100
    (80)
    6,75 7,50 239 800 127 875 ü ü C B 70 A LABEL
    MANUFACTURER CODE TIRE SIZE LOAD / SPEED
    INDEX
    LOAD CAPACITY SPEED LIMIT RIM DIAMETER (Inch) INFLATED DIMENSIONS (mm) INFLATED PRESSURE M+S SNOW FLAKE EU TIRE LABEL
    SINGLE DUAL RECOMMENDED PERMITTED SECTION WIDTH OUTER DIAMETER psi kPA ROLLING RESISTANCE WET GRIP NOISE dB NOISE LEVEL lbldwn
    72302 385/65 R22.5 160 K (158 L) 9000
    (8500)
    N/A 110
    (120)
    11,75 12,25 372 1081 130 900 ü ü C B 73 B LABEL
    72303 385/65 R22,5 164 K 10000 N/A 110 11,75 12,25 372 1081 130 900 ü ü C B 73 B LABEL
