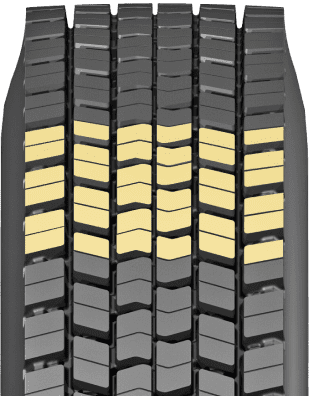

RH100 is a drive axle pattern designed for busses and trucks. Provides exceptional traction on asphalt roads. Block array decreases wear and increases wet grip. Optimized tread profile provides resistance against irregular wear under heavy loads. Delivers a safe drive and extended mileage in demanding winter conditions. Suitable for retreading.
Optimized tread design provides resistance against irregular wear by distributing the pressure equally under load.
Reinforced interconnected blocks and carefully arranged block array improve driving balance.
Circumferential and lateral grooves drain water quickly and efficiently.
Block array structure provides high traction by generating numerous road adherence points on asphalt in any kind of weather conditions.
Special tread compound and robust structure ensure longevity and enhance fuel efficiency.
Excellent carcass structure is suitable for retreading.
Optimized tread depth increases the tire’s lifespan.
| MANUFACTURER CODE | TIRE SIZE | LOAD / SPEED INDEX | LOAD CAPACITY | SPEED LIMIT | RIM DIAMETER (Inch) | INFLATED DIMENSIONS (mm) | INFLATED PRESSURE | M+S | SNOW FLAKE | EU TIRE LABEL | ||||||||
| SINGLE | DUAL | RECOMMENDED | PERMITTED | SECTION WIDTH | OUTER DIAMETER | psi | kPA | ROLLING RESISTANCE | WET GRIP | NOISE dB | NOISE LEVEL | lbldwn | ||||||
| 71552 | 265/70 R19.5 | 140/138 M | 5000 | 9440 | 130 | 7,50 | 6,75 | 266 | 866 | 112 | 775 | ü | ü | D | C | 74 | B | LABEL |
| 71602 | 285/70 R19.5 | 146/144 L
(140/137 M) |
6000
(5000) |
11200
(9200) |
120
(130) |
8,25 | 7.50 , 9.00 | 287 | 897,5 | 130 | 900 | ü | ü | E | C | 74 | B | LABEL |
| MANUFACTURER CODE | TIRE SIZE | LOAD / SPEED
INDEX |
LOAD CAPACITY | SPEED LIMIT | RIM DIAMETER (Inch) | INFLATED DIMENSIONS (mm) | INFLATED PRESSURE | M+S | SNOW FLAKE | EU TIRE LABEL | ||||||||
| SINGLE | DUAL | RECOMMENDED | PERMITTED | SECTION WIDTH | OUTER DIAMETER | psi | kPA | ROLLING RESISTANCE | WET GRIP | NOISE dB | NOISE LEVEL | lbldwn | ||||||
| 71254 | 11 R22.5 | 148/145 M | 6300 | 11600 | 130 | 8,25 | 7,50 | 278,5 | 1058 | 123 | 850 | ü | ü | E | C | 74 | B | LABEL |
| 71304 | 12 R22.5 | 152/148 M | 7100 | 12600 | 130 | 9,00 | 8,25 | 300 | 1096 | 123 | 850 | ü | ü | D | B | 74 | B | LABEL |
| 72502 | 295/60 R22.5 | 150/147 L | 6700 | 12300 | 120 | 9,00 | 9,00 | 292 | 926 | 130 | 900 | ü | ü | E | C | 74 | B | LABEL |
| 72252 | 315/80 R22.5 | 154/150 M
(156/150 L) |
7500
(8000) |
13400
(13400) |
130
(120) |
9,00 | 9,75 | 312 | 1096 | 120 | 825 | ü | ü | D | B | 75 | B | LABEL |
| 71852 | 315/70 R22.5 | 154/150 L
(152/148 M) |
7500
(7100) |
13400
(12600) |
120
(130) |
9,00 | 9,75 | 315 | 1021,5 | 130 | 900 | ü | ü | E | B | 75 | B | LABEL |
| 72552 | 315/60 R22.5 | 152/148 L | 7100 | 12600 | 120 | 9,00 | 9,75 | 386 | 955 | 123 | 850 | ü | ü | D | B | 75 | B | LABEL |
