TBR TIRES

BUS

SH100

SH100

SH100 pattern is suitable to use on all axles on buses and at steer or non-powered second axle on trucks. Tread pattern geometry is optimized to deliver steering and grip on wet roads. Exceptional carcass structure provides outstanding braking performance

0%
    SH100

    TECHNICAL HIGHLIGHTS

    • Computer designed tire profile and block arrays offer safe and balanced driving.

    • Optimised tread design provides resistance against irregular wear by balancing the pressure equally under load.

    • Special tread compound and robust structure ensure longevity and economic fuel consumption.

    • Excellent carcass structure is suitable for retreading several times.

    • Offers excellent grip and short braking distance with numerous sipes and z-shaped circumferential blocks.

    • Circumferential grooves discharge water quickly and efficiently.

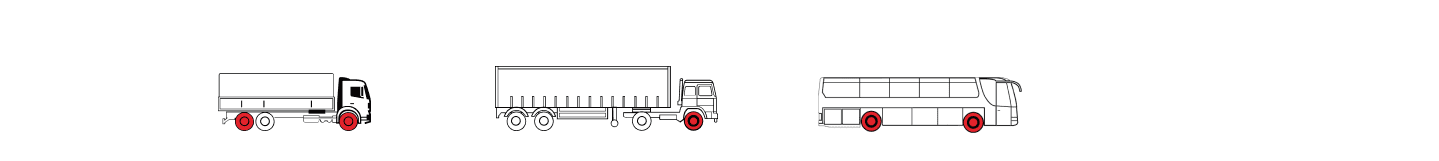

    POSITION / APPLICATION

    SH100

    ALL SIZES TRUCK AND BUS

    MANUFACTURER CODE TIRE SIZE LOAD / SPEED INDEX LOAD CAPACITY SPEED LIMIT RIM DIAMETER (Inch) INFLATED DIMENSIONS (mm) INFLATED PRESSURE M+S SNOW FLAKE EU TIRE LABEL
    SINGLE DUAL RECOMMENDED PERMITTED SECTION WIDTH OUTER DIAMETER psi kPA ROLLING RESISTANCE WET GRIP NOISE dB NOISE LEVEL lbldwn
    71520 245/70 R19.5 136/134 M 4880 8480 130 7,50 6,75 247,5 843,2 123 850 ü ü D B 69 A LABEL
    71550 265/70 R19.5 140/138 M 5000 9440 130 7,50 6,75 263,6 865,8 112 775 ü ü D B 69 A LABEL
    71600 285/70 R19.5 146/144 L (145/143 M) 6000
    (5800)
    11200
    (10900)
    120
    (130)
    8,25 7.50 , 9.00 286 897 130 900 ü ü D B 69 A LABEL
    MANUFACTURER CODE TIRE SIZE LOAD / SPEED
    INDEX
    LOAD CAPACITY SPEED LIMIT RIM DIAMETER (Inch) INFLATED DIMENSIONS (mm) INFLATED PRESSURE M+S SNOW FLAKE EU TIRE LABEL
    SINGLE DUAL RECOMMENDED PERMITTED SECTION WIDTH OUTER DIAMETER psi kPA ROLLING RESISTANCE WET GRIP NOISE dB NOISE LEVEL lbldwn
    72200 295/80 R22.5 152/148 M 7100 12600 130 9,00 8,25 303 1056 123 850 ü ü D A 69 A LABEL
    72250 315/80 R22.5 154/150 M (156/150 L) 7500
    (8000)
    13400
    (13400)
    130
    (120)
    9,00 9,75 311 1085 120 825 ü ü D A 69 A LABEL

    DOWNLOADS

    SH100
