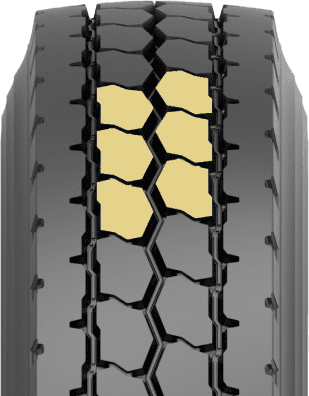

Closed structure and pattern compound are specifically engineered for construction and mining site conditions to offer long life and ultimate wear and cut resistance. Provides excellent grip and handling on tough or muddy roads.
Optimized tread profile improves resistance against irregular wear by distributing pressure equally under heavy load.
Wide and closed shoulder structure improves lateral balance and damage resistance.
Stone ejectors among the blocks avoid pebble penetration inside groves.
Three circumferential grooves improve handling and traction by effectively discharging water, mud and snow.
Specially engineered tread compound and wide blocks provide resistance to wears and cuts.
Zigzag block structure offers outstanding handling and braking performance on roads and construction sites.
Strong and durable carcass is suitable for retreading multiple times to maximize service life.
Interconnected blocks provide a balanced drive on road, while increasing durability on site conditions.
| MANUFACTURER CODE | TIRE SIZE | LOAD / SPEED INDEX | LOAD CAPACITY | SPEED LIMIT | RIM DIAMETER (Inch) | INFLATED DIMENSIONS (mm) | INFLATED PRESSURE | M+S | SNOW FLAKE | EU TIRE LABEL | ||||||||
| SINGLE | DUAL | RECOMMENDED | PERMITTED | SECTION WIDTH | OUTER DIAMETER | psi | kPA | ROLLING RESISTANCE | WET GRIP | NOISE dB | NOISE LEVEL | lbldwn | ||||||
| 71357 | 13 R22.5 | 156/150 K | 8000 | 13400 | 110 | 9,75 | 9,00 | 323 | 1135 | 127 | 875 | ü | ü | D | B | 72 | B | LABEL |
| 72207 | 295/80 R22.5 | 152/148 L | 7100 | 12600 | 120 | 9,00 | 8,25 | 296.8 | 1051.1 | 125 | 860 | ü | ü | D | B | 72 | B | LABEL |
| 72257 | 315/80 R22.5 | 156/150 K | 8000 | 13400 | 110 | 9,00 | 9,75 | 311 | 1085 | 125 | 850 | ü | ü | D | B | 72 | B | LABEL |
| MANUFACTURER CODE | TIRE SIZE | LOAD / SPEED
INDEX |
LOAD CAPACITY | SPEED LIMIT | RIM DIAMETER (Inch) | INFLATED DIMENSIONS (mm) | INFLATED PRESSURE | M+S | SNOW FLAKE | EU TIRE LABEL | ||||||||
| SINGLE | DUAL | RECOMMENDED | PERMITTED | SECTION WIDTH | OUTER DIAMETER | psi | kPA | ROLLING RESISTANCE | WET GRIP | NOISE dB | NOISE LEVEL | lbldwn | ||||||
| 70607 | 12.00 R24 | 160/157 K | 9000 | 16500 | 110 | 8,50 | 9.00 | 316.3 | 1219.1 | 131 | 900 | ü | ü | D | B | 72 | B | LABEL |
| 70609
|
12.00 R24
|
160/157 K
|
9000 | 16500 | 110 | 8,50 | 9.00 | 316.3 | 1219.1 | 131 | 900 | ü | ü | D | A | 71 | B | LABEL |
