General purpose R-1W tractor radial tire. Offers a wider footprint for reduced soil compaction and enhanced flotation on soft terrains. Provides a comfortable ride, low rolling resistance for fuel efficiency, exceptional traction, and wear resistance.
Special tread compound provides high level of resistance against wear and cuts.

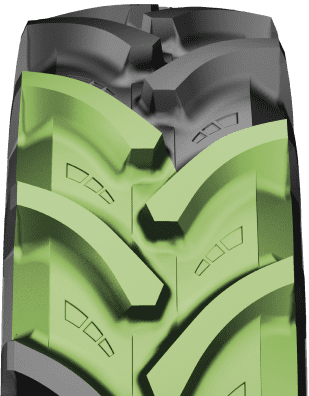

Tread profile provides exceptional traction and high performance throughout the tire’s lifespan while enhancing resistance against tread base fatigue.
Offers excellent self-cleaning feature.
Special structure improves flotation on soft terrains and ensures a comfortable ride at all operating conditions.
Low rolling resistance leads to maximum fuel efficiency.
Wider footprint offers lower soil compaction.
MANUFUCTURER CODE | TIRE SIZE | TT/TL | LOAD / SPEED INDEX | RIMS | INFLATED DIMENSIONS(NO LOAD) | INFLATED DIMENSIONS | |||
RECOM. (INCH) | PERMIT. (INCH) | OUTER DIAMETER(MM) | SECTION WIDTH(MM) | STATIC LOADED RADIUS(MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | ||||
17210 | 9.5 R20 | TL | 108 A8 / 105B | W8 | W7 | 940 | 241 | 430 | 2848 |
MANUFUCTURER CODE | TIRE SIZE | TT/TL | LOAD / SPEED INDEX | RIMS | INFLATED DIMENSIONS(NO LOAD) | INFLATED DIMENSIONS | |||
RECOM. (INCH) | PERMIT. (INCH) | OUTER DIAMETER(MM) | SECTION WIDTH(MM) | STATIC LOADED RADIUS(MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | ||||
14202 | 9.5 R24 | TL | 109 A8/ 109 B | W8 | W7 | 1030 | 241 | 488 | 3135 |
MANUFUCTURER CODE | TIRE SIZE | TT/TL | LOAD / SPEED INDEX | RIMS | INFLATED DIMENSIONS(NO LOAD) | INFLATED DIMENSIONS | |||
RECOM. (INCH) | PERMIT. (INCH) | OUTER DIAMETER(MM) | SECTION WIDTH(MM) | STATIC LOADED RADIUS(MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | ||||
14350 | 420/85 R28 | TL | 139 A8/136 B | W15L | W13, W14L | 1425 | 418 | 635 | 4261 |
14440 | 380/85 R30 | TL | 135 A8/132 B | W12 | W11, W13 | 1404 | 380 | 634 | 4236 |
14450 | 420/85 R30 | TL | 140 A8/137 B | W15L | W13, W14L | 1475 | 420 | 660 | 4455 |
14460 | 460/85 R30 | TL | 145 A8/142 B | W16L | W14L, W15L | 1544 | 455 | 694 | 4683 |
14490 | 320/85 R32 | TL | 126 A8/126 B | W11 | W9, W10 | 1357 | 319 | 625 | 4071 |
14520 | 380/85 R34 | TL | 137 A8/137 B | W12 | W11, W13 | 1528 | 380 | 674 | 4468 |
14550 | 420/85 R34 | TL | 142 A8/139 B | W15L | W13, W14L | 1578 | 418 | 715 | 4750 |
14560 | 460/85 R34 | TL | 147 A8/144 B | W16L | W14L, W15L | 1646 | 455 | 750 | 4965 |
14600 | 320/85 R36 | TL | 128 A8/125 B | W11 | W9, W10 | 1458 | 319 | 671 | 4364 |
14610 | 340/85 R36 | TL | 132 A8/129 B | W12 | W11 | 1492 | 343 | 685 | 4482 |
14620 | 320/85 R38 | TL | 143 A8/143 B | W10 | W9, W11, DW11 | 1510 | 319 | 698 | 4515 |
14630 | 340/85 R38-. | TL | 133 A8/130 B | W12 | W11 | 1540 | 343 | 715 | 4675 |
14640 | 380/85 R38 | TL | 139 A8/136 B | W12 | W11, W13 | 1611 | 380 | 742 | 4833 |
14550 | 420/85 R38 | TL | 144 A8/141 B | W15L | W13, W14L | 1675 | 418 | 762 | 5042 |
14660 | 460/85 R38 | TL | 149 A8/146 B | W16L | W14L, W15L | 1747 | 455 | 805 | 5270 |
14661 | 460/85 R38 | TL | 149 A8/146 B | W16L | W14L, W15L | 1754 | 447,5 | 805 | 5270 |
14680 | 520/85 R38 | TL | 155 A8/152 B | DD16L | DW16L, DW18L | 1849 | 516 | 828 | 5529 |
14690 | 650/85 R38 | TL | 173 A8/173 B | DW23B | DW20B, DW21B | 2071 | 645 | 922 | 6095 |
14710 | 520/85 R42 | TL | 157 A8/157 B | DD18L | DW16L, DW18L | 1951 | 516 | 875 | 5850 |
14712 | 520/85 R42 | TL | 162 A8/162 B | DD18L | DW16L, DW18L | 1951 | 516 | 875 | 5850 |
14750 | 520/85 R46 | TL | 158 A8/155 B | DW16L | DW18L | 2052 | 516 | 922 | 6090 |
14210 | 280/85 R24 | TL | 115A8/112B | W10 | W9 | 1086 | 282 | 495 | 3267 |
14222 | 320/85 R24 | TL | 122 A8/122B | W11 | W9, W10, DW10, DW11 | 1154 | 319 | 515 | 3465 |
14683 | 520/85 R38 R/F | TL | 178A8/172 B | DW16L | DW15L, DD16L, W18L, DW18L, DD18L | 1849 | 516 | 856 | 5540 |
14312 | 280/85 R28 | TL | 118 A8/118 B | W10 | W9, DW10 | 1186,6 | 282 | 542 | 3560 |
14322 | 320/85 R28 | TL | 124 A8/ 124 B | W11 | W9, W10, DW10, DW11 | 1255 | 319 | 574 | 3752 |
14242 | 380/85 R24 | TL | 131 A8 / 131 B | W12 | W11, DW11, DW12, W13, DW13 | 1256 | 380 | 560 | 3750 |
14342 | 380/85 R28 | TL | 133 A8/133 B | W12 | W11, DW11, W12, DW12, W13 | 1350 | 380 | 612 | 4089 |
14232 | 340/85 R24 | TL | 125 A8 / 125 B | W12 | W11, DW11, DW12 | 1188 | 343 | 542 | 3555 |
14252 | 420/85 R24 | TL | 137 A8 / 137 B | W15L | W13, DW13, W14L, DW14, DW15 | 1324 | 418 | 591 | 3958 |
14442 | 380/85 R30 | TL | 135 A8 / 135 B | W12 | W11, W13 | 1408 | 380 | 634 | 4236 |
14452 | 420/85 R30 | TL | 140 A8 / 140 B | W15L | W13, DW13L, W14L, DW14L, W15L, DW15L | 1475 | 418 | 660 | 4455 |
14552 | 420/85 R34 | TL | 142 A8 / 142 B | W15L | W13, DW13L, W14L, DW14L, W15L, DW15L | 1578 | 418 | 715 | 4750 |
14462 | 460/85 R30 | TL | 145 A8 / 145 B | DW15 | W14L, W15L, DW15L, W16L, DW16L | 1544 | 455 | 694 | 4683 |
14663 | 460/85 R38. | TL | 149 A8 / 149 B | DW15L | W14L, W15L, W16L | 1747 | 455 | 805 | 5270 |
14751 | 520/85 R46 | TL | 170D | DW18L | DW18L | 2052 | 526 | 900 | 6030 |
14100 | 280/85 R20 | TL | 111 A8 / 109 B | W9 | W10 | 989 | 282 | 446 | 2955 |
14110 | 320/85 R20 | TL | 119 A8/ 116 B | W11 | W9,W10 | 1052 | 319 | 472 | 3145 |
14330 | 340/85 R28 | TL | 127 A8 / 124 B | W12 | W11 | 1287 | 343 | 600 | 3880 |
14332 | 340/85 R28 | TL | 127 A8 / 124 B | W12 | W11, DW11, DW12 | 1289 | 360 | 600 | 3880 |
MANUFUCTURER CODE | TIRE SIZE | TT/TL | LOAD / SPEED INDEX | RIMS | INFLATED DIMENSIONS(NO LOAD) | INFLATED DIMENSIONS | |||
RECOM. (INCH) | PERMIT. (INCH) | OUTER DIAMETER(MM) | SECTION WIDTH(MM) | STATIC LOADED RADIUS(MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | ||||
15830 | 260/80 R20 | TL | 106 A8/103 B | W8 | W8, W9, 9 | 924 | 258 | 430 | 2795 |
18180 | 480/80 R38 | TL | 149 A8/149 B | DW16L | DD16L, W16L, DW16A, W16A | 1733 | 479 | 790 | 5199 |
18200 | 480/80 R42 | TL | 151 A8/151 B | DW16L | DD16L, W16L, DW16A, W16A | 1847 | 479 | 846 | 5538 |
18202 | VF480/80 R42 | TL | 162D | DW16L | DW15L, DW16L | 1835 | 479 | 846 | 5538 |
17950 | 480/80 R46 | TL | 158 A8/158 B | DW16L | DD16L, W16L, DW16A, W16A | 1952 | 479 | 891 | 5876 |
17952 | VF480/80 R46 | TL | 177D | DW16L | DW15L, DW16L | 1936 | 479 | 890 | 5740 |
17960 | 480/80 R50 | TL | 159 A8/159 B | DW16L | DW14L, W15L, DW15L, W16L | 2064 | 479 | 945 | 6192 |
17962 | VF480/80 R50 | TL | 179D | DW16L | DW15L, DW16 | 2038 | 479 | 940 | 6100 |
MANUFUCTURER CODE | TIRE SIZE | TT/TL | LOAD / SPEED INDEX | RIMS | INFLATED DIMENSIONS(NO LOAD) | INFLATED DIMENSIONS | |||
RECOM. (INCH) | PERMIT. (INCH) | OUTER DIAMETER(MM) | SECTION WIDTH(MM) | STATIC LOADED RADIUS(MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | ||||
11510 | 200/70 R16 | TL | 94 A8/94 B | W6 | W6 | 691 | 197 | 312 | 2050 |
15520 | 240/70 R16 | TL | 104 A8/101 B | W8 | W8L,W9 | 742 | 244 | 334 | 2219 |
15530 | 260/70 R16 | TL | 109 A8/106 B | W8 | W8L,W9 | 770 | 258 | 345 | 2302 |
15540 | 280/70 R16 | TL | 112 A8/112 B | W9 | W8, W8L, W10 | 805 | 282 | 358 | 2390 |
15640 | 280/70 R18 | TL | 114 A8/114 B | W9 | W8, W10 | 846 | 282 | 384 | 2540 |
15730 | 260/70 R20 | TL | 113 A8/113 B | W8 | W9, 9 | 880 | 258 | 397 | 2635 |
15740 | 280/70 R20 | TL | 116 A8/116 B | W9 | W10 | 912 | 282 | 416 | 2736 |
16050 | 380/70 R20 | TL | 132 A8/132 B | W12 | W11, W13 | 1082 | 380 | 484 | 3246 |
16220 | 480/70 R26 | TL | 139 A8/136 B | W15L | W14L, W16L | 1370 | 479 | 619 | 4080 |
16380 | 380/70 R28 | TL | 127 A8/127 B | W12 | W11, W13 | 1297 | 380 | 586 | 3888 |
16620 | 520/70 R30 | TL | 145 A8/142 B | W16L | W15L, W18L | 1557 | 516 | 683 | 4560 |
16342 | 320/70 R28 | TL | 119 A8/119 B | W10 | W9, W11 | 1189 | 319 | 547 | 3555 |
16062 | 320/70 R24 | TL | 116 D | W10 | W9, W11 | 1084 | 319 | 494 | 3271 |
16072 | 360/70 R24 | TL | 122 D | W11 | W10, W12 | 1152 | 357 | 517 | 3433 |
16362 | 360/70 R28 | TL | 125 D | W11 | W10, W12 | 1260 | 357 | 570 | 3780 |
16542 | 420/70 R30 | TL | 134 D | W13 | W12, W14L | 1398 | 418 | 630 | 4166 |
16882 | 580/70 R38 | TL | 155 D | W18L | W18L, DW18L | 1827 | 577 | 819 | 5463 |
16122 | 480/70 R24 | TL | 138 D | W15L | W14L, W16L | 1316 | 479 | 576 | 3885 |
16382 | 380/70 R28 | TL | 127 D | W12 | W11, W13 | 1293 | 380 | 586 | 3888 |
16862 | 520/70 R38 | TL | 150 D | W16L | W15L, W18L | 1749 | 516 | 789 | 5212 |
16842 | 480/70 R38 | TL | 145 D | W15L | W14L, W16L | 1681 | 479 | 762 | 4990 |
16582 | 480/70 R30 | TL | 141 D | W15L | W14L, W16L | 1478 | 479 | 660 | 4389 |
16442 | 480/70 R28 | TL | 140 D | W15L | W14L, W16L | 1421,2 | 479 | 637 | 4200 |
16402 | 420/70 R28 | TL | 133 D | W13 | W12, W14L | 1349 | 418 | 610 | 4033 |
16042 | 360/70 R20 | TL | 129 A8/129 B | W11 | W10, W12 | 1042 | 357 | 463 | 3116 |
16022 | 320/70 R20- | TL | 123 A8/123 B | W10 | W9, W11 | 982 | 319 | 442 | 2919 |
16012 | 300/70 R20 | TL | 120 A8/ 120 B | W9 | W10 | 952 | 290 | 435 | 2811 |
16762 | 480/70 R34 | TL | 149 D | W15L | W14L, W16L | 1580 | 479 | 712 | 4708 |
16932 | 580/70 R42 | TL | 158 D/161 A8 | W18L | DW18L | 1879 | 577 | 859 | 5637 |
MANUFUCTURER CODE | TIRE SIZE | TT/TL | LOAD / SPEED INDEX | RIMS | INFLATED DIMENSIONS(NO LOAD) | INFLATED DIMENSIONS | |||
RECOM. (INCH) | PERMIT. (INCH) | OUTER DIAMETER(MM) | SECTION WIDTH(MM) | STATIC LOADED RADIUS(MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | ||||
17210 | 420/65 R24 | TL | 126 D/126 B | W13 | W11, W12 | 1156 | 418 | 524 | 3468 |
17380 | 540/65 R28 | TL | 149 D/152 A8 | W16L | W18L | 1431 | 535 | 637 | 4248 |
17480 | 540/65 R30 | TL | 150 D/153 A8 | W16L | W18L | 1477 | 534,5 | 664 | 4390 |
17640 | 600/65 R38 | TL | 159 D/162 A8 | DW20B | W18L | 1747 | 591 | 786 | 5229 |
17660 | 650/65 R38 | TL | 163 D/166 A8 | DW20B | DW20B | 1841 | 645 | 825 | 5510 |
17212 | 420/65 R24 | TL | 138 D/141 A8 | W13 | W11, W12, DW12, DW13 | 1156 | 418 | 524 | 3468 |
17261 | 480/65 R24 | TL | 140D/143A8 | W13 | W11, W12, DW12, DW13 | 1156 | 418 | 524 | 3468 |
17281 | 540/65 R24 | TL | 146D/149A8 | W16L | W18LW18L | 1431 | 535 | 637 | 4248 |
