Agricultural Tires

ROW CROP

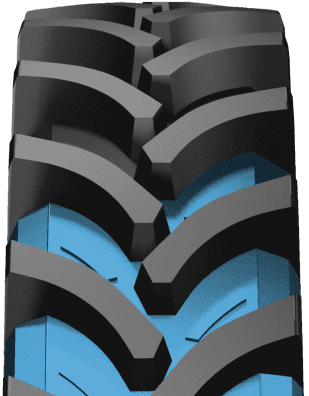

TA120

General purpose R-1W row crop tractor and sprayer tire.

0%
    TA120 ROW CROP

    TECHNICAL HIGHLIGHTS

    • Robust carcass structure enables maximum performance under heavy loads.

    • Special tread compound provides high resistance against wear and cuts.

    • Deep lugs and special tread compound ensure longevity.

    • Narrow profile protects the crop from damages.

    • Tread design enhances self-cleaning capability and reduces slippage.

    TA120 ROW CROP

    ALL SIZES Agricultural Tires

    MANUFUCTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS(NO LOAD) INFLATED DIMENSIONS(W/LOAD)
    RECOM. (INCH) PERMIT. (INCH) OUTER DIAMETER(MM) SECTION WIDTH(MM) STATIC LOADED RADIUS(MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    17840 210/95 R32 TL 114 A8/114 B W7 W6 1212 211 571 3676
    MANUFUCTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS(NO LOAD) INFLATED DIMENSIONS(W/LOAD)
    RECOM. (INCH) PERMIT. (INCH) OUTER DIAMETER(MM) SECTION WIDTH(MM) STATIC LOADED RADIUS(MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    17860 230/95 R32 TL 126 A8/126 B W7 W8 1255 230 593 3799
    MANUFUCTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS(NO LOAD) INFLATED DIMENSIONS(W/LOAD)
    RECOM. (INCH) PERMIT. (INCH) OUTER DIAMETER(MM) SECTION WIDTH(MM) STATIC LOADED RADIUS(MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    17865 270/95 R32 TL 136 A8/136 B W9 W8, W10 1327 275 618 3981
    MANUFUCTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS(NO LOAD) INFLATED DIMENSIONS(W/LOAD)
    RECOM. (INCH) PERMIT. (INCH) OUTER DIAMETER(MM) SECTION WIDTH(MM) STATIC LOADED RADIUS(MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    17880 210/95 R36 TL 116 A8/116 B W7 W6 1314 211 621 3985
    MANUFUCTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS(NO LOAD) INFLATED DIMENSIONS(W/LOAD)
    RECOM. (INCH) PERMIT. (INCH) OUTER DIAMETER(MM) SECTION WIDTH(MM) STATIC LOADED RADIUS(MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    17890 230/95 R36 TL 128 A8/128 B W7 W8 1358 230 644 4117
    MANUFUCTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS(NO LOAD) INFLATED DIMENSIONS(W/LOAD)
    RECOM. (INCH) PERMIT. (INCH) OUTER DIAMETER(MM) SECTION WIDTH(MM) STATIC LOADED RADIUS(MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    17896 270/95 R38 TL 140 A8/140 B W9 W8, W10 1479 275 673 4437
    MANUFUCTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS(NO LOAD) INFLATED DIMENSIONS(W/LOAD)
    RECOM. (INCH) PERMIT. (INCH) OUTER DIAMETER(MM) SECTION WIDTH(MM) STATIC LOADED RADIUS(MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    17910 230/95 R40 TL 122 A8/122 B W7 W8 1454 228 684 4362
    MANUFUCTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS(NO LOAD) INFLATED DIMENSIONS(W/LOAD)
    RECOM. (INCH) PERMIT. (INCH) OUTER DIAMETER(MM) SECTION WIDTH(MM) STATIC LOADED RADIUS(MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    17920 210/95 R44 TL 120 A8/120 B W7 W6 1522 211 723 4616
    MANUFUCTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS(NO LOAD) INFLATED DIMENSIONS(W/LOAD)
    RECOM. (INCH) PERMIT. (INCH) OUTER DIAMETER(MM) SECTION WIDTH(MM) STATIC LOADED RADIUS(MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    17940 230/95 R44 TL 132 A8/132 B W7 W8 1568 230 733 4748
    MANUFUCTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS(NO LOAD) INFLATED DIMENSIONS(W/LOAD)
    RECOM. (INCH) PERMIT. (INCH) OUTER DIAMETER(MM) SECTION WIDTH(MM) STATIC LOADED RADIUS(MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    17943 270/95 R44 TL 142 A8/142 B W9 W8, W10 1632 275 770 4896
    MANUFUCTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS(NO LOAD) INFLATED DIMENSIONS(W/LOAD)
    RECOM. (INCH) PERMIT. (INCH) OUTER DIAMETER(MM) SECTION WIDTH(MM) STATIC LOADED RADIUS(MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    17941 300/95 R46 TL 148 A8/148 B W9 DW10, W10 DW11, W11 1738 295 807 5214
    MANUFUCTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS(NO LOAD) INFLATED DIMENSIONS(W/LOAD)
    RECOM. (INCH) PERMIT. (INCH) OUTER DIAMETER(MM) SECTION WIDTH(MM) STATIC LOADED RADIUS(MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    17942 230/95 R48 TL 136 A2/125 A8 W7 W8 1662 230 796 5031
    MANUFUCTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS(NO LOAD) INFLATED DIMENSIONS(W/LOAD)
    RECOM. (INCH) PERMIT. (INCH) OUTER DIAMETER(MM) SECTION WIDTH(MM) STATIC LOADED RADIUS(MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    17946 270/95 R48 TL 144 A8/144 B W9 W8, W10 1733 275 904 5721
    MANUFUCTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS(NO LOAD) INFLATED DIMENSIONS(W/LOAD)
    RECOM. (INCH) PERMIT. (INCH) OUTER DIAMETER(MM) SECTION WIDTH(MM) STATIC LOADED RADIUS(MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    17945 270/95 R54 TL 157 A2/146 A8 W9 W8, W10 1886 275 821 5199
    MANUFUCTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS(NO LOAD) INFLATED DIMENSIONS(W/LOAD)
    RECOM. (INCH) PERMIT. (INCH) OUTER DIAMETER(MM) SECTION WIDTH(MM) STATIC LOADED RADIUS(MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    17964 300/95 R52 TL 156 D/159 A8 W9 DW10, W10 DW11, W11 1891 295 896 5673
    MANUFUCTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS(NO LOAD) INFLATED DIMENSIONS(W/LOAD)
    RECOM. (INCH) PERMIT. (INCH) OUTER DIAMETER(MM) SECTION WIDTH(MM) STATIC LOADED RADIUS(MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    18100 380/90 R46 TL 159 D/162 A8 W12 W11, W13 1852 380 877 5556
    MANUFUCTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS(NO LOAD) INFLATED DIMENSIONS(W/LOAD)
    RECOM. (INCH) PERMIT. (INCH) OUTER DIAMETER(MM) SECTION WIDTH(MM) STATIC LOADED RADIUS(MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    14850 340/85 R48 TL 151 D/154 A8 W12 W11 1797 343 844 5391
    INFLATION PRESSURE (PSI/BAR) LOAD CAPACITY PER TIRE, KG
    SPEED (KM/H)
    10 25 30 40 50 60
    17 / 1,2 1110 920 885 830 830 -
    20 / 1,4 1235 1025 985 925 925 -
    23 / 1,6 1360 1130 1090 1015 1015 -
    26 / 1,8 1425 1180 1140 1065 1065 -
    29 / 2,0 1490 1235 1190 1110 1110 -
    32 / 2,2 1535 1275 1225 1145 1145 -
    35 / 2,4 1585 1310 1265 1180 1180 -
    17 / 1,2 1280 1060 1020 955 955 -
    20 / 1,4 1415 1170 1130 1055 1055 -
    23 / 1,6 1550 1285 1240 1160 1160 -
    26 / 1,8 1620 1340 1295 1210 1210 -
    29 / 2,0 1710 1420 1365 1275 1275 -
    32 / 2,2 1755 1455 1405 1310 1310 -
    35 / 2,4 1800 1495 1440 1345 1345 -
    38 / 2,6 1915 1590 1530 1430 1430 -
    41 / 2,8 1985 1645 1585 1480 1480 -
    44 / 3,0 2075 1720 1660 1550 1550 -
    46 / 3,2 2145 1775 1710 1600 1600 -
    49 / 3,4 2210 1835 1765 1650 1650 -
    52 / 3,6 2280 1890 1820 1700 1700 -
    17 / 1,2 1595 1320 1275 1190 1190 -
    20 / 1,4 1775 1470 1415 1325 1325 -
    23 / 1,6 1925 1595 1535 1435 1435 -
    26 / 1,8 2045 1695 1630 1525 1525 -
    29 / 2,0 2135 1770 1705 1595 1595 -
    32 / 2,2 2195 1820 1750 1640 1640 -
    35 / 2,4 2255 1865 1800 1680 1680 -
    38 / 2,6 2375 1965 1895 1770 1770 -
    41 / 2,8 2465 2040 1970 1840 1840 -
    44 / 3,0 2555 2115 2040 1905 1905 -
    46 / 3,2 2675 2215 2135 1995 1995 -
    49 / 3,4 2765 2290 2210 2065 2065 -
    52 / 3,6 2855 2365 2280 2130 2130 -
    55 / 3,8 2915 2415 2325 2175 2175 -
    58 / 4,0 3005 2490 2400 2240 2240 -
    17 / 1,2 1175 975 940 875 875 -
    20 / 1,4 1310 1085 1045 975 975 -
    23 / 1,6 1445 1195 1155 1075 1075 -
    26 / 1,8 1510 1250 1205 1125 1125 -
    29 / 2,0 1575 1305 1260 1175 1175 -
    32 / 2,2 1625 1350 1300 1215 1215 -
    35 / 2,4 1675 1390 1340 1250 1250 -
    17 / 1,2 1355 1120 1080 1010 1010 -
    20 / 1,4 1500 1240 1195 1120 1120 -
    23 / 1,6 1645 1360 1310 1225 1225 -
    26 / 1,8 1715 1420 1370 1280 1280 -
    29 / 2,0 1810 1500 1445 1350 1350 -
    32 / 2,2 1860 1540 1485 1390 1390 -
    35 / 2,4 1910 1580 1525 1425 1425 -
    38 / 2,6 2030 1680 1620 1515 1515 -
    41 / 2,8 2100 1740 1680 1570 1570 -
    44 / 3,0 2195 1820 1755 1640 1640 -
    46 / 3,2 2270 1880 1815 1695 1695 -
    49 / 3,4 2340 1940 1870 1750 1750 -
    52 / 3,6 2415 2000 1930 1800 1800 -
    17 / 1,2 1780 1475 1420 1325 1325 -
    20 / 1,4 1980 1640 1580 1475 1475 -
    23 / 1,6 2145 1780 1715 1600 1600 -
    26 / 1,8 2280 1890 1820 1700 1700 -
    29 / 2,0 2380 1975 1900 1775 1775 -
    32 / 2,2 2450 2030 1955 1825 1825 -
    35 / 2,4 2515 2085 2010 1875 1875 -
    38 / 2,6 2650 2195 2115 1975 1975 -
    41 / 2,8 2750 2280 2195 2050 2050 -
    44 / 3,0 2850 2360 2275 2125 2125 -
    46 / 3,2 2985 2470 2385 2225 2225 -
    49 / 3,4 3085 2555 2465 2300 2300 -
    52 / 3,6 3185 2640 2545 2375 2375 -
    55 / 3,8 3250 2695 2595 2425 2425 -
    58 / 4,0 3350 2775 2675 2500 2500 -
    17 / 1,2 1410 1170 1125 1050 1050 -
    20 / 1,4 1570 1300 1255 1170 1170 -
    23 / 1,6 1730 1435 1385 1290 1290 -
    26 / 1,8 1810 1500 1445 1350 1350 -
    29 / 2,0 1890 1570 1510 1410 1410 -
    32 / 2,2 1950 1620 1560 1455 1455 -
    35 / 2,4 2010 1665 1605 1500 1500 -
    17 / 1,2 1315 1090 1050 980 980 -
    20 / 1,4 1465 1215 1170 1095 1095 -
    23 / 1,6 1615 1340 1290 1205 1205 -
    26 / 1,8 1690 1400 1350 1260 1260 -
    29 / 2,0 1765 1465 1410 1320 1320 -
    32 / 2,2 1820 1510 1455 1360 1360 -
    35 / 2,4 1880 1555 1500 1400 1400 -
    17 / 1,2 1505 1245 1200 1120 1120 -
    20 / 1,4 1665 1380 1330 1240 1240 -
    23 / 1,6 1825 1510 1460 1360 1360 -
    26 / 1,8 1905 1580 1520 1420 1420 -
    29 / 2,0 2010 1665 1605 1500 1500 -
    32 / 2,2 2065 1710 1650 1540 1540 -
    35 / 2,4 2120 1755 1695 1580 1580 -
    38 / 2,6 2255 1865 1800 1680 1680 -
    41 / 2,8 2335 1935 1865 1740 1740 -
    44 / 3,0 2440 2025 1950 1820 1820 -
    46 / 3,2 2520 2090 2015 1880 1880 -
    49 / 3,4 2600 2155 2080 1940 1940 -
    52 / 3,6 2680 2220 2140 2000 2000 -
    17 / 1,2 1885 1560 1505 1405 1405 -
    20 / 1,4 2100 1740 1675 1565 1565 -
    23 / 1,6 2275 1885 1815 1700 1700 -
    26 / 1,8 2415 2005 1930 1805 1805 -
    29 / 2,0 2525 2090 2015 1885 1885 -
    32 / 2,2 2595 2150 2070 1935 1935 -
    35 / 2,4 2665 2210 2130 1990 1990 -
    38 / 2,6 2810 2325 2245 2095 2095 -
    41 / 2,8 2915 2415 2330 2175 2175 -
    44 / 3,0 3020 2505 2415 2255 2255 -
    46 / 3,2 3165 2620 2525 2360 2360 -
    49 / 3,4 3270 2710 2610 2440 2440 -
    52 / 3,6 3375 2795 2695 2520 2520 -
    55 / 3,8 3445 2855 2755 2575 2575 -
    58 / 4,0 3555 2945 2840 2650 2650 -
    17 / 1,2 2240 1855 1790 1670 1670 -
    20 / 1,4 2495 2065 1990 1860 1860 -
    23 / 1,6 2705 2240 2160 2020 2020 -
    26 / 1,8 2875 2380 2295 2145 2145 -
    29 / 2,0 3000 2485 2395 2240 2240 -
    32 / 2,2 3085 2555 2465 2300 2300 -
    35 / 2,4 3170 2625 2530 2365 2365 -
    38 / 2,6 3335 2765 2665 2490 2490 -
    41 / 2,8 3465 2870 2765 2585 2585 -
    44 / 3,0 3590 2975 2865 2680 2680 -
    46 / 3,2 3760 3115 3000 2805 2805 -
    49 / 3,4 3885 3220 3105 2900 2900 -
    52 / 3,6 4010 3325 3205 2995 2995 -
    55 / 3,8 4095 3395 3270 3060 3060 -
    58 / 4,0 4225 3500 3375 3150 3150 -
    17 / 1,2 1190 975 940 875 800 -
    20 / 1,4 1325 1085 1045 975 890 -
    23 / 1,6 1435 1175 1130 1060 965 -
    26 / 1,8 1525 1250 1205 1125 1025 -
    29 / 2,0 1595 1305 1255 1175 1070 -
    32 / 2,2 1640 1340 1290 1205 1100 -
    35 / 2,4 1680 1375 1325 1240 1130 -
    38 / 2,6 1770 1450 1395 1305 1190 -
    41 / 2,8 1840 1505 1450 1355 1235 -
    44 / 3,0 1905 1560 1505 1405 1280 -
    46 / 3,2 1995 1635 1575 1470 1340 -
    49 / 3,4 2065 1685 1625 1520 1385 -
    52 / 3,6 2130 1740 1680 1570 1430 -
    55 / 3,8 2175 1780 1715 1605 1460 -
    58 / 4,0 2240 1835 1770 1650 1505 -
    17 / 1,2 1990 1650 1590 1485 1485 -
    20 / 1,4 2215 1835 1770 1655 1655 -
    23 / 1,6 2405 1990 1920 1795 1795 -
    26 / 1,8 2555 2115 2040 1905 1905 -
    29 / 2,0 2665 2210 2130 1990 1990 -
    32 / 2,2 2740 2270 2190 2045 2045 -
    35 / 2,4 2815 2335 2250 2100 2100 -
    38 / 2,6 2965 2460 2370 2215 2215 -
    41 / 2,8 3080 2550 2460 2300 2300 -
    44 / 3,0 3190 2645 2550 2380 2380 -
    46 / 3,2 3340 2770 2670 2495 2495 -
    49 / 3,4 3455 2860 2760 2580 2580 -
    52 / 3,6 3565 2955 2850 2660 2660 -
    55 / 3,8 3640 3015 2910 2720 2720 -
    58 / 4,0 3755 3110 3000 2800 2800 -
    17 / 1,2 1980 1600 1545 1440 1315 -
    20 / 1,4 2230 1800 1735 1620 1475 -
    23 / 1,6 2435 1965 1895 1770 1615 -
    26 / 1,8 2600 2100 2025 1890 1720 -
    29 / 2,0 2725 2200 2120 1980 1805 -
    32 / 2,2 2805 2265 2185 2040 1860 -
    35 / 2,4 2890 2335 2250 2100 1915 -
    38 / 2,6 3055 2465 2380 2220 2025 -
    41 / 2,8 3180 2565 2475 2310 2105 -
    44 / 3,0 3300 2665 2570 2400 2185 -
    46 / 3,2 3465 2800 2700 2520 2295 -
    49 / 3,4 3590 2900 2795 2610 2380 -
    52 / 3,6 3715 3000 2890 2700 2460 -
    55 / 3,8 3795 3065 2955 2760 2515 -
    58 / 4,0 3920 3165 3050 2850 2595 -
    64 / 4,4 4125 3330 3210 3000 2730 -
    17 / 1,2 2230 1850 1780 1665 1600 1520
    20 / 1,4 2580 2140 2060 1925 1850 1760
    23 / 1,6 2875 2380 2295 2145 2060 1960
    26 / 1,8 3110 2575 2485 2320 2230 2120
    29 / 2,0 3285 2720 2625 2450 2355 2240
    32 / 2,2 3405 2820 2720 2540 2440 2320
    35 / 2,4 3520 2915 2810 2625 2520 2400
    38 / 2,6 3755 3110 3000 2800 2690 2560
    41 / 2,8 3930 3255 3140 2935 2815 2680
    44 / 3,0 4105 3400 3280 3065 2940 2800
    46 / 3,2 4340 3595 3465 3240 3110 2960
    49 / 3,4 4515 3740 3605 3370 3235 3080
    52 / 3,6 4690 3885 3745 3500 3360 3200
    55 / 3,8 4810 3985 3840 3590 3445 3280
    58 / 4,0 4985 4130 3980 3720 3570 3400
    64 / 4,4 5455 4520 4355 4070 3910 3720
    70 / 4,8 5865 4860 4685 4375 4200 4000
    17 / 1,2 3375 2795 2695 2520 2435 2320
    20 / 1,4 3760 3115 3000 2805 2715 2585
    23 / 1,6 4075 3375 3255 3040 2940 2800
    26 / 1,8 4330 3590 3460 3230 3125 2975
    29 / 2,0 4520 3745 3610 3375 3265 3110
    32 / 2,2 4650 3850 3715 3470 3355 3195
    35 / 2,4 4775 3955 3815 3565 3450 3285
    38 / 2,6 5030 4170 4020 3755 3630 3460
    41 / 2,8 5220 4325 4170 3895 3770 3590
    44 / 3,0 5415 4485 4325 4040 3905 3720
    46 / 3,2 5665 4695 4525 4230 4090 3895
    49 / 3,4 5860 4855 4680 4370 4230 4025
    52 / 3,6 6050 5010 4830 4515 4365 4160
    55 / 3,8 6175 5115 4935 4610 4460 4245
    58 / 4,0 6365 5275 5085 4750 4595 4375
    17 / 1,2 2815 2335 2250 2100 2030 1935
    20 / 1,4 3120 2585 2490 2325 2250 2140
    23 / 1,6 3420 2835 2730 2550 2465 2350
    26 / 1,8 3570 2960 2850 2665 2575 2450
    29 / 2,0 3770 3125 3010 2815 2720 2590
    32 / 2,2 3870 3210 3090 2890 2790 2660
    35 / 2,4 3970 3290 3170 2965 2865 2730
    38 / 2,6 4225 3500 3375 3150 3045 2900
    41 / 2,8 4375 3625 3495 3265 3155 3005
    44 / 3,0 4575 3790 3655 3415 3300 3140
    46 / 3,2 4725 3915 3775 3525 3410 3245
    49 / 3,4 4875 4040 3895 3640 3625 3450
    52 / 3,6 5025 4165 4015 3750 3625 3450

    DOWNLOAD

    TA120 ROW CROP
