Agricultural Tires

TA330

R-1 tire designed for harvester applications

Agricultural Tires | TA330
TA330

TECHNICAL HIGHLIGHTS

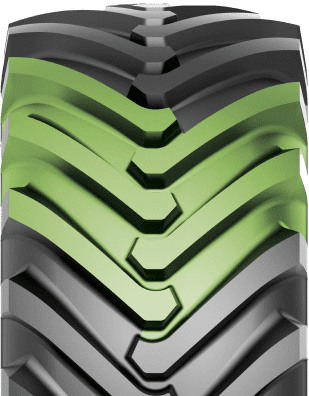

  • Provides superior performance on tough terrains with its specially designed tread pattern.

  • The unique lug design prevents any kind of crop damage and provides easy cleaning feature during field operations.

  • Exceptional carcass structure provides optimum durability.

  • Tread profile with extra wide tread base ensures perfect resistance to tread base fatigue.

  • Wide and reinforced body provides perfect grip, high traction and reduced slippage.

TA330

ALL SIZES Agricultural Tires

MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIMS INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD)
RECOMMENDED (INCH) PERMITTED (INCH) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
30.5L-32 18 TL 170 / A6 DW27B DHB27,DH27B,DH27H 1819 770 820 5420
INFLATION PRESSURE (PSI/BAR) LOAD CAPACITY PER TIRE, KG
SPEED (KM/H)
10 20 30 40
20 / 1,4 6375 5230 4550 4250
30 / 2,1 8400 7200 6000 5400

DOWNLOAD

TA330
